Overview

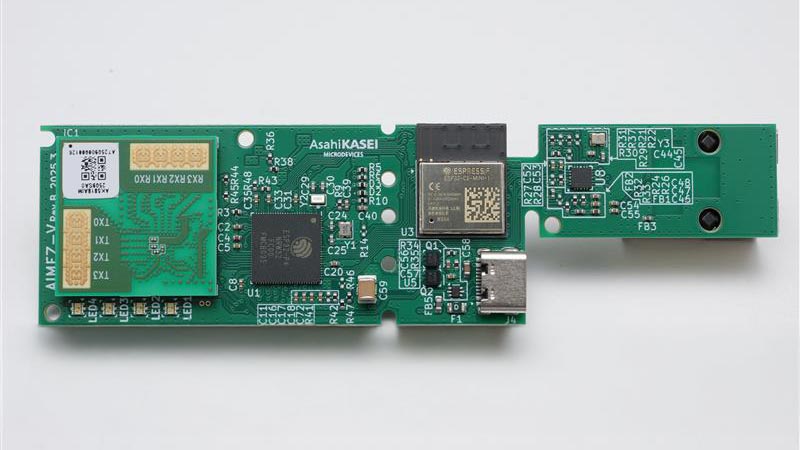

AIMEZ-V is an evaluation kit based on the millimeter-wave radar antenna-in-module (AiM) products, AK5816AIM and AK5818AIM.
It includes Wi-Fi®/ Bluetooth® enabled modules, a microcontroller, and various interfaces, allowing flexible use from basic operation checks to embedded evaluation.
This page provides access to dedicated software (GUI/ firmware).
For initial setup and usage instructions, please refer to the instructional video at the bottom of the page.
* Wi-Fi® is a registered trademark of Wi-Fi Alliance.
* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
Software
We provide GUI and firmware tailored to each function.
To use the software, please review the disclaimer below. If you agree to the terms, fill out the request form with the required information.
After submitting the form, a download URL will be sent to the email address that is provided by you.
Some software and documentation will be released in phases.
Please note that, for confirmation purposes, you may be contacted by our affiliated companies or authorized distributors.
Disclaimer
- This software is provided "as is," and AKM makes no warranties, including but not limited to non-infringement of third-party intellectual property rights.
- AKM shall not be held liable for any damage arising from the use or inability to use this software, whether to your company or to third parties.

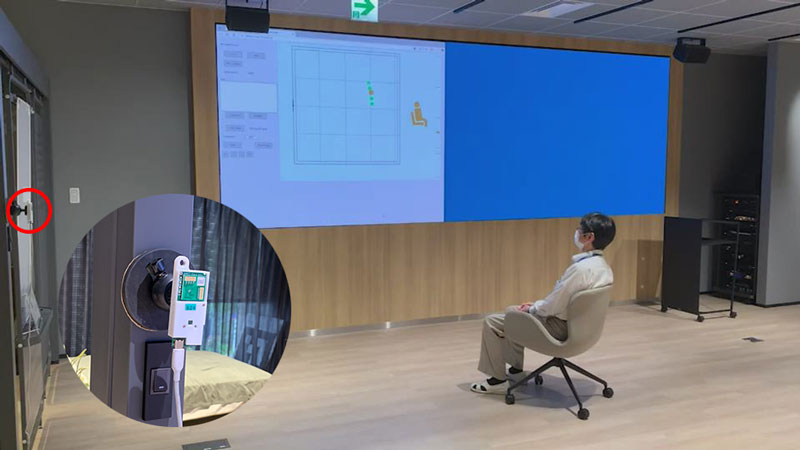

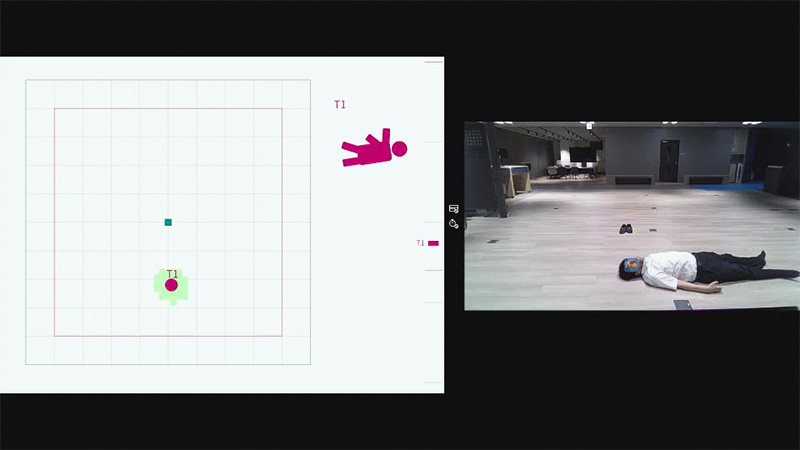

#1 Posture and Fall Detection (Single-Person Monitoring)
Overview
The evaluation kit “AIMEZ-V” enables tracking of a person’s location and estimation of posture and falls. This algorithm serves as a basic example of human tracking using the RPU (Radar Processing Unit) built into the AiM (Antenna-in-Module). It supports configurations that allow tilting in both azimuth and elevation directions, accommodating use cases for both wall-mounted and ceiling-mounted installations.
The bundled GUI not only displays detection results but also supports saving RPU output data and post-tracking processed data in CSV file format.
The supported number of subjects is limited to one person. For multi-person monitoring or more precise point cloud analysis, advanced processing using ADC raw data output with an external MCU (Microcontroller Unit) is recommended.
System Requirements
- Supported OS: Windows11 Version 23H2 Platform Update
Release Notes
- Released on December 25, 2025, ver. 2.0

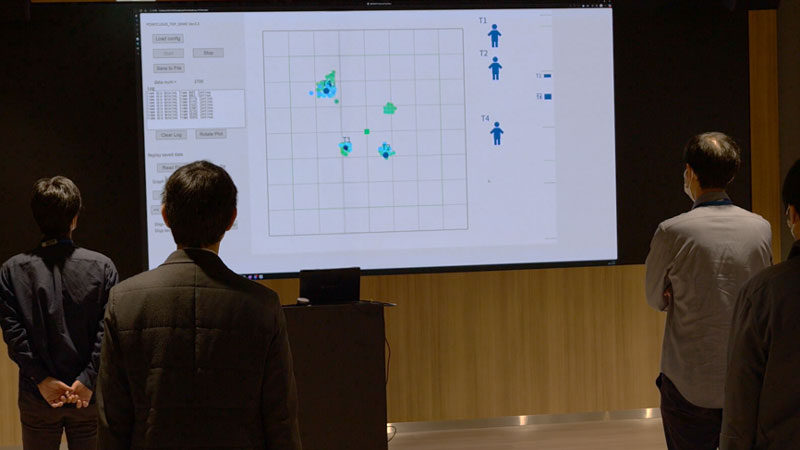

#2 Posture and Fall Detection (Multi-Person Monitoring)
Overview
The evaluation kit “AIMEZ-V” enables estimation of the positions and fall status of multiple individuals within the monitoring area. This algorithm serves as an advanced implementation example of high-precision point cloud detection by applying the Capon method on an external MCU using ADC data output from AiM. It supports configurations that allow tilting in both azimuth and elevation directions, accommodating use cases for both wall-mounted and ceiling-mounted installations.
The bundled GUI not only displays monitoring results but also supports saving RPU output data and post-tracking processed data in CSV file format.
The Capon computation algorithm is provided as a library for ESP32-P4, enabling the use of high-precision point cloud information for developing various algorithms.
System Requirements
- Supported OS: Windows11 Version 23H2 Platform Update
Release Notes
- Released on December 25, 2025, ver. 1.0

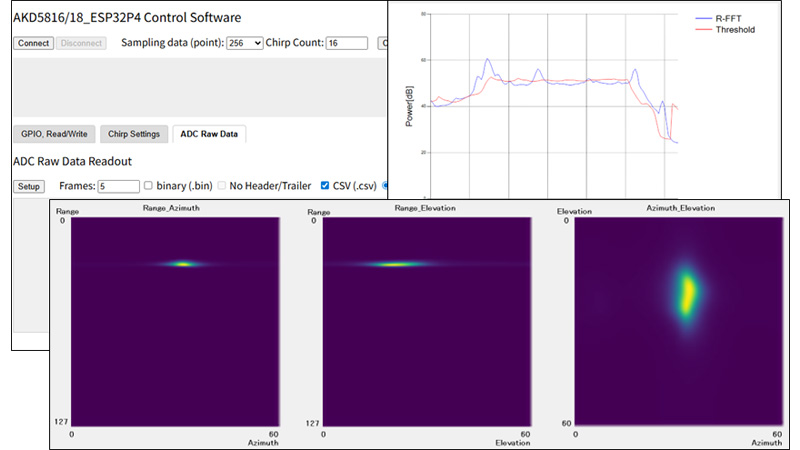

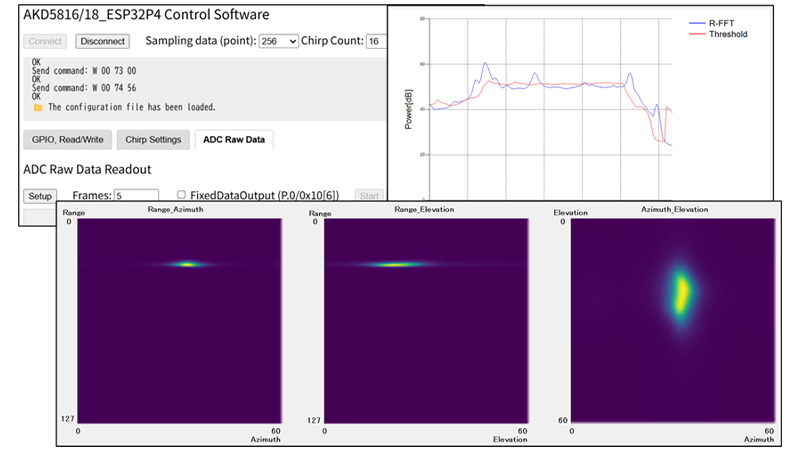

#3 ADC Data Collection and Analysis
Overview
This tool is designed for advanced users to collect and analyze ADC raw data from the AiM mounted on the “AIMEZ-V” evaluation kit.
The bundled GUI allows users to acquire ADC raw data in binary format under various conditions while adjusting AiM register settings. It also includes offline radar signal processing functions, enabling data analysis in formats such as heatmaps and high-precision point clouds.
It can be used as a pre-study step for developing systems that perform higher-precision radar signal processing in combination with an external MCU.
System Requirements
- Supported OS: Windows11 Version 23H2 Platform Update
Release Notes
- Released on December 25, 2025, ver. 2.0
Request Form
Please fill out the required fields on the form and submit it.
- aimez-v-fw-gui-posture-tiltable
English [aimez-v-fw-gui-posture-tiltable.zip]
- aimez-v-fw-gui-capon
English [aimez-v-fw-gui-capon.zip]
- aimez-v-fw-gui-adc-data
English [aimez-v-fw-gui-adc-data.zip]
Please fill out and submit the form below to receive a URL that will direct you to additional information.
Note
・Please read our Terms and Conditions, Privacy Policy, and Cookie Policy before using this service.
・By submitting these forms, you agree to AKM’s Terms and Conditions, Privacy Policy, and Cookie Policy.
myAKM service
You can receive the latest product information and notifications of new and updated documents, news, topics, events and exhibitions by e-mail. We may also send you exhibition invitations or contact you by phone. Please refer to myAKM membership service for further details.
Operation Guide
The easy-to-follow video explains the basic usage of the AIMEZ-V evaluation kit.
Each step is explained clearly from software installation to hardware connections so that even first-time users can get started with confidence.
