Millimeter-Wave Evaluation Kit Dedicated Page【Limited Access】
Millimeter-wave Radar
To make privacy-conscious human state detection more accessible.
Asahi Kasei Microdevices (AKM)’s evaluation kits detect respiration, position, and posture without physical contact while ensuring privacy.
With USB, Wi-Fi®, or Bluetooth® Low Energy connectivity and GUI operation, flexible evaluation is possible to suit various environments.
This page introduces two models suited to different use cases:
AIMEZ-V, available for online purchase, and the high-performance LUMI.
| Model Name | AIMEZ-V | LUMI |
|---|---|---|
| Key Features | General-purpose model that is easy to implement and available for online purchase | High-performance model with SoC, supporting machine learning-based human state detection |
| Main Target Users | Those who want to quickly start PoC or validation | Those aiming for customized processing/high-precision sensing feature or more flexible development |
| Demonstration Video | Available | |
| Design Documents | Circuit diagrams and layout drawings provided | Contact Us |
| User Guide | Introduced via video | Contact Us |
| How to Obtain | DigiKey , Mouser | Contact Us |
* SoC: System on Chip
* Wi-Fi® is a registered trademark of Wi-Fi Alliance.
* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

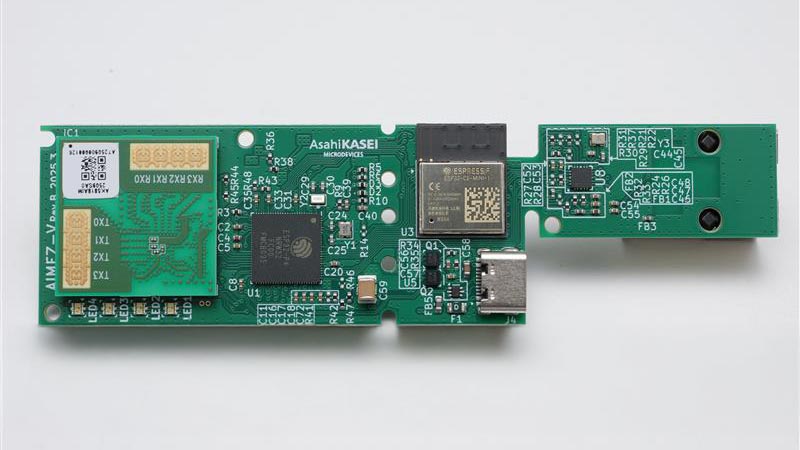

AIMEZ-V
Demonstration Video
Posture and Fall Detection
This demo showcases real-time detection of a person’s position and state using the AIMEZ-V evaluation kit. This model allows for non-contact, real-time tracking of human location, and can also distinguish between standing, sitting, and fallen postures.
Since detection is achieved without using a camera, it enables privacy-conscious monitoring.
*Note: This demo video uses our 60 GHz product. The camera footage is for reference only; the system itself detects human states without using a camera.
Respiration Detection
By installing AIMEZ-V on the ceiling of a room, human respiration can be detected without contact. It can detect breathing not only in upright postures but also lying with face down, helping to quickly identify abnormalities, particularly useful for individuals living alone.
Since this system uses a millimeter-wave radar instead of a camera, it can be safely used in privacy-sensitive environments, such as during sleeping periods.
*Note: This demo video uses our 60 GHz product. The camera footage is for reference only; the system itself detects human states without using a camera.

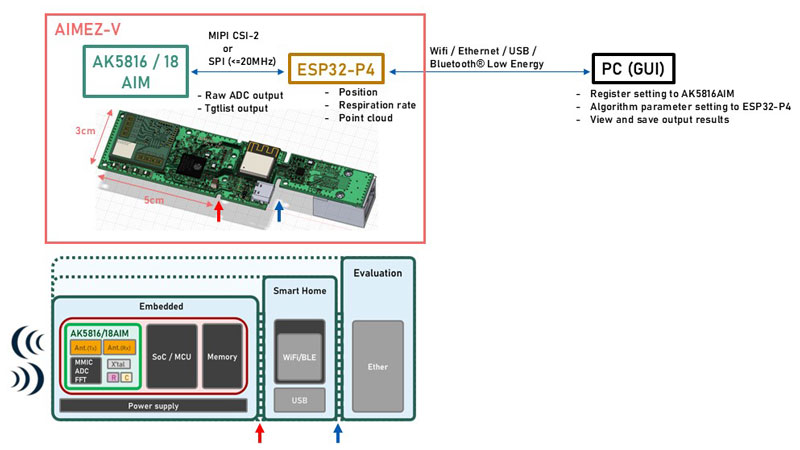

Configuration
- Millimeter-wave transceiver : AK5816AIM/AK5818AIM (4-channel TX, 4-channel RX)
- SoC : ESP32-P4 (dual-core RISC-V® , 400MHz, 32MB PSRAM, 16MB Flash memory)
- Multiple interfaces supported : USB, Ethernet, Wi-Fi® , Bluetooth® Low Energy)
- Data output : Point cloud and ADC_raw data saved in CSV format
- AKM algorithms : Compatible with AKM-developed algorithms
- GUI : Simple and user-friendly interface
* SoC: System on Chip
* RISC-V® is a registered trademark of RISC-V International.
* Wi-Fi® is a registered trademark of Wi-Fi Alliance.
* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
If you would like detailed data on the evaluation board, please download it from the link below.
- AIMEZ-V Circuit Design Data
- Schematics (PDF)
- KiCad Project Files
You can cut the board at the red and blue arrow positions according to your application.
User Guide
The easy-to-follow video explains the basic usage of the AIMEZ-V evaluation kit.
Each step is explained clearly from software installation to hardware connections so that even first-time users can get started with confidence.
How to Obtain
Available for purchase from the EC site below.
If you have any questions, please feel free to contact us.

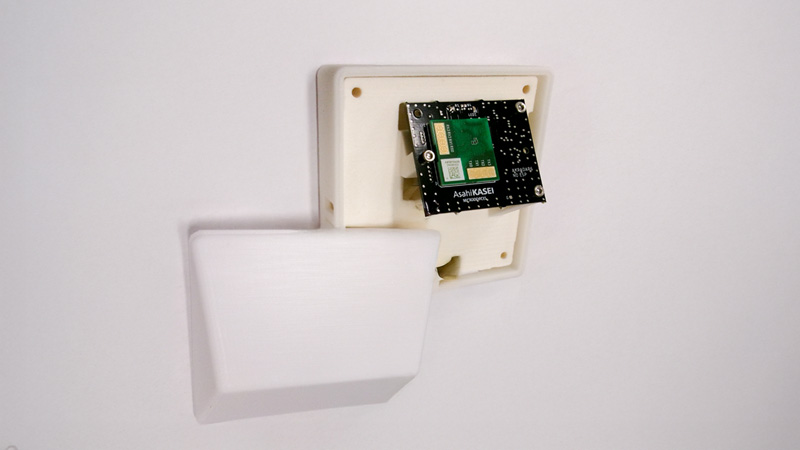

LUMI
Demonstration Video
Multi-Person Position & Posture Detection
This demonstration introduces the LUMI evaluation kit, which enables the simultaneous detection of the positions of multiple individuals and the posture or fallen state of one person.
This model uses AKM’s millimeter-wave radar modules, AK5816AIM/AK5818AIM. It acquires high-precision 3D point cloud data, which is analyzed through signal processing leveraging a machine learning technology.
Without using a camera, the system accurately detects the positions of multiple individuals, and for one of them, it identifies their posture or fallen state without physical contact.
This demonstration showcases an example where the system simultaneously detects the positions of three individuals and the posture of one person.
*Note: This demo video uses our 60 GHz product. The camera footage is for reference only; the system itself detects human states without using a camera.

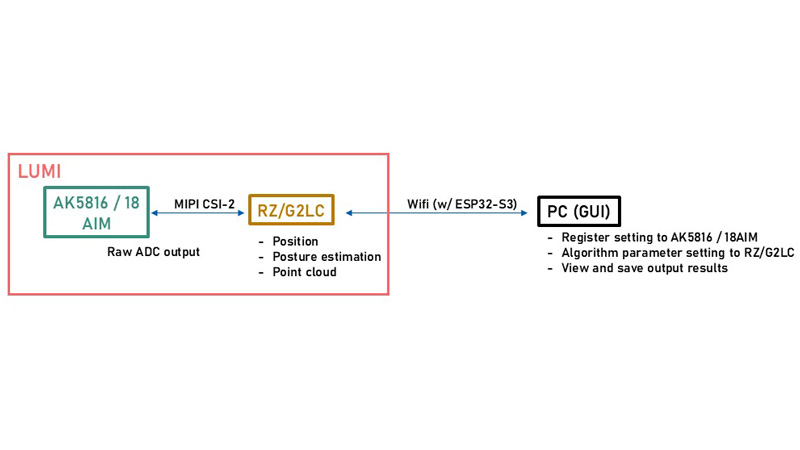

Configuration
- Millimeter-wave Transceiver : AK5816AIM/AK5818AIM (4 TX channels, 4 RX channels)
- SoC : Renesas RZ/G2LC (Cortex-A55 1.2GHz Dual-core)
- AKM Algorithm : Pre-installed and runs on the microcontroller; supports position and posture estimation
- Point Cloud Data Storage : CSV output for customer-developed algorithm
- GUI : Simple and user-friendly interface
How to Obtain
This model is available to selected customers.
If you are interested, please contact us for further details.
