AK8471VN
MP
4 ch input 16-bit 12MSPS/ch AFE for CIS scanner with LED driver
4 ch input 16-bit 12MSPS/ch AFE for CIS scanner with LED driver
MP
Description
The AK8471VN is an AFE for 4 channel contact image sensor (CIS). It has offset and gain adjusting functions, timing generator for CIS, LVDS interface and LED drivers. The AK8471VN is suitable for CIS base multi-function printers and image scanners.
Key Features
-
Equipped with timing generator, LVDS interface, LED driver
Applications
-
MFP, Scanners, etc.
Specifications
| Part Number |
AK8471VN |
|---|---|
| Number of Input Channels |
4 |
| Maximum Conversion Rate [MSPS/Ch] |
12 |
| ADC Resolution [bit] |
16 |
| Sensor Type |
CMOS |
| Power Supply Voltage (MIN.) [V] |
3.0 , 3.0 |
| Power Supply Voltage (TYP.) [V] |
5.0 , 3.3 |
| Power Supply Voltage (MAX.) [V] |
5.7 , 3.6 |
| Output Type |
LVDS |
| Other | |
| Operating Temperature [℃] |
0 to 70 |
| Device Package |
HWQFN |
| Number of Pins |
36 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

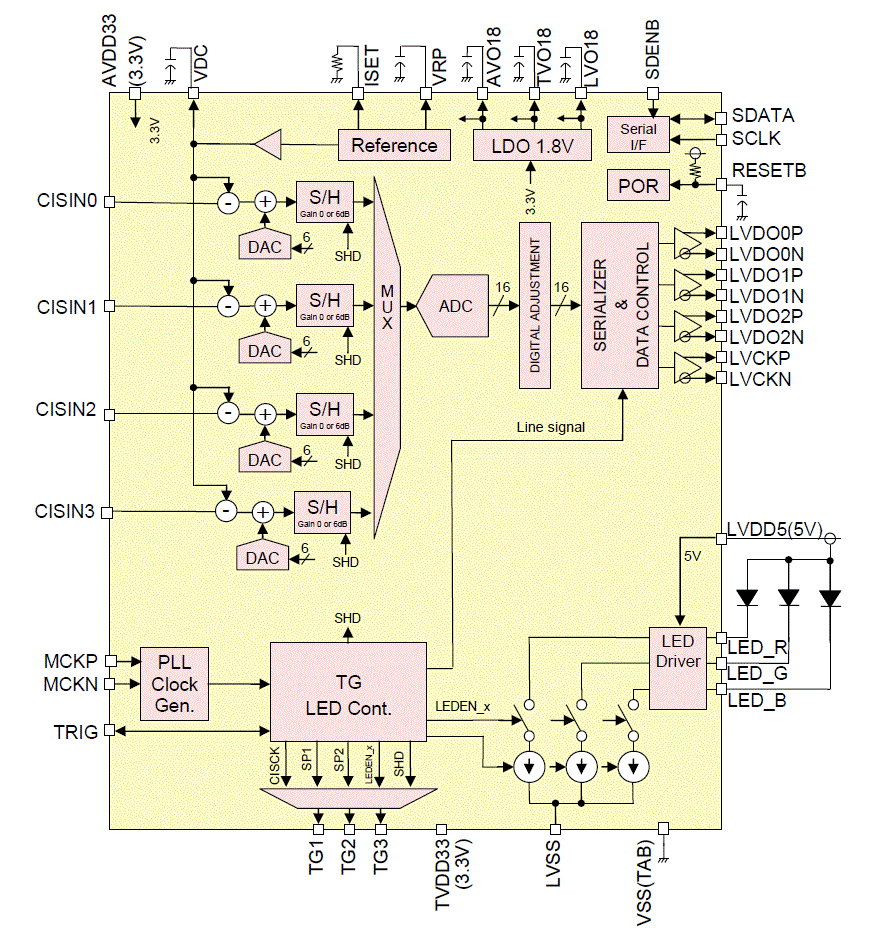

Block Diagram
