高分辨率解码器元件
(半导体磁阻元件)

高精度齿轮旋转检测的理想选择

高精度齿轮旋转检测的理想选择

产品

与m=0.3的齿轮组合使用
差分信号输出方式SMRE

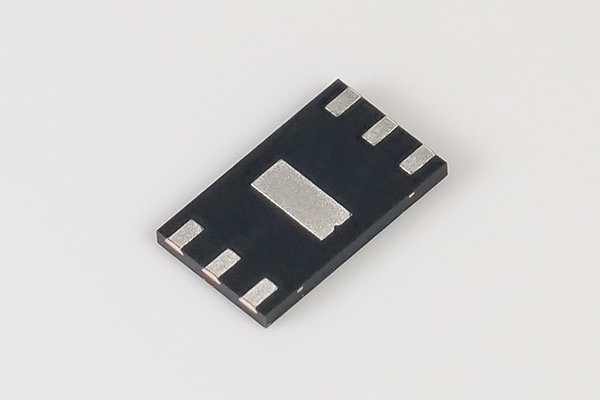

MS0031

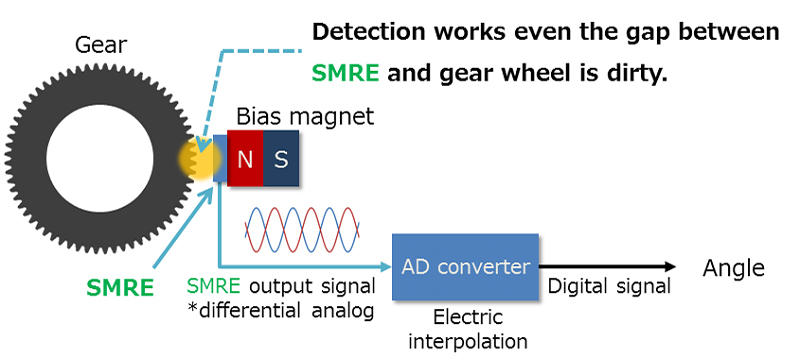

MS0031通过区分A+/A-和B+/B-的输出信号,可以降低共模噪声。AKM的SMRE具有极好的温度特性和较小的设备间差异。MS0031通过电插值实现了超过20位的高分辨率旋转角度检测,实现了磁阻元件中的顶级性能*。

* 2018年9月底市场调查结果。



● A+/A-和B+/B-的差分输出。

A相B相运用差分输出来消除共模噪声,并提供了双倍的输出振幅,从而有利于磁编码器的高精度化和高分辨率化。

SMRE
MS0031 MS0031

Rotary encoder

  • Machine tool spindle position and speed control
  • Machining Machine tool precise rotation angle control
  • Hoisting motor
  • Electrical injection molding machine main shaft control
  • CT scanner control
  • X-ray transfer bed position control
  • Motor control
  • Crane slewing azimuth angle detection

Motor controlling

  • Industrial Robots
  • Machine Tools
  • AC Servo motors

Linear encoder

  • Linear control

产品系列

Part Number
Part
Status
Pitch
[mm]
Input / Output
Resistance (MIN.)
[Ω]
Input / Output
Resistance (TYP.)
[Ω]
Input / Output
Resistance (MAX.)
[Ω]
Number of Elements
Other
Operating
Temperature
[℃]
Device
Package
Number
of Pins
MS0020
MP
0.634
205


330
1


-40 to 100
SON
4
MS0030
MP
0.96
270


375
1


-40 to 125
SON
4
MS0031
MP
0.96
280


480
1


-40 to 125
SON
6
MS0041
MP
1.28
270


375
1


-40 to 125
SON
4
MS0042
MP
1.28
290


420
2


-40 to 125
SON
8
MS0043
MP
1.28
275


410
1


-40 to 125
SON
6
MS0050
MP
1.6
270


375
1


-40 to 125
SON
4
MS0060
MP
1.92
300


500
1


-40 to 125
SON
4
MS0082
MP
2.512
465


755
1


-40 to 125
SON
4
MS0083
MP
2.624
290


480
1


-40 to 125
SON
6
MSP042
MP
1.28
230


375
2


-40 to 100
DIP
8
MSP043
MP
1.28
230


375
2


-40 to 100
DIP
8
MSP082
MP
2.512
465


755
2


-40 to 100
DIP
8
MSP204
NRND
6.84
290


420
4


-40 to 125
DIP
8
MSP254
NRND
8.64
290


420
4


-40 to 125
DIP
8
