3轴磁传感器
There is increasing demand for a sensing function to monitor an object’s status in remote locations as IoT products are expected to grow in the market.

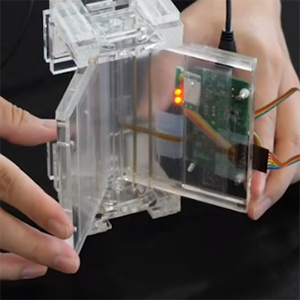

AKM has developed the AK09970, a tri-axis magnetic sensor that is able to detect magnetic signals in X, Y, and, Z directions. The AK09970 supports wide measurement range with high resolution in tri-axis detection and captures magnetic fields in 3-dimensions.
With these abilities, it is great device for controlling the direction of security cameras and connected home, (smart home, smart house), smart locks, along with door and window open/close detection.
High Precision
Tri-axis Magnetic Sensor
AK09940
- World-Class Ultra-Low Noise
- Ultra-Low Current Consumption

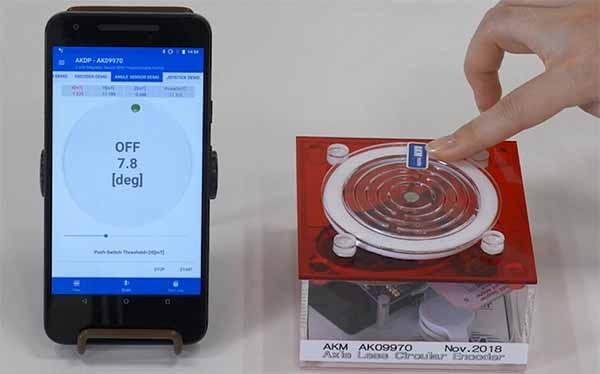

Tri-axis
Magnetic Smart Switch
AK09970D
- Reduction of Package Area to 1/5 of Conventional Product
- Wide Measurement Range & High Resolution
- Low-power Consumption when Battery Life is Critical
产品系列
3轴磁传感器
Part Number |
Part Status |
Power Supply Voltage (MIN.) [V] |
Power Supply Voltage (TYP.) [V] |
Power Supply Voltage (MAX.) [V] |
Magnetic Sensitivity [μT/LSB] |
Measurement range [mT] |
Measurement Time [ms] |
Noise (Power Mode) [nT rms] |
Current Consumption (@100Hz ODR) [μA] |
Current Consumption when measuring [mA] |
Output pin |
Control Interface |
Other |
Operating Temperature [℃] |
Device Package |
Number of Pins |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
AK09940 |
MP |
1.7 |
1.98 |
0.01 |
±1.2 |
0.66 / 0.98 / 1.62 / 2.9 |
70 / 60 / 50 / 40 |
30 / 60 / 100 / 200 |
I²C / 4-wire SPI |
-30 to 85 |
ULGA |
11 |
||||
AK09970N |
MP |
1.7 |
3.6 |
1.1 |
X,Y,Z ±36 |
0.23 |
27 |
1.5 |
Interrupt pin (CMOS/Open Drain) |
SPI / I²C |
-40 to 85 |
HWQFN |
16 |
|||
AK09970D |
NEW |
1.7 |
3.6 |
1.1 |
X,Y,Z ±36 |
0.23 |
27 |
1.5 |
Interrupt pin (CMOS/Open Drain) |
I²C |
-40 to 85 |
WLCSP |
6 |
Aiming to realize a wealthy life
About S-cube
S-cube is a brand name of tri-axis magnetic sensing concept presented by Asahi Kasei Microdevices (AKM).
AKM provides "Magnetic Sensing Solution" that predicts user application needs with its unique IC circuit architecture and information processing algorithm which obtains information hidden in the signal of magnetic sensors.
S3 and S-cube logos are a trademark of Asahi Kasei Microdevices Corporation in Japan, Europe and the United States.
