旋转角度传感器

The AKM rotation angle sensor enables the measurement of magnetic fields in parallel to the chip surface and can detect the absolute angle of a magnetic field.

产品

AKM的旋转角度传感器芯片由硅片上的霍尔元件和信号处理电路组成。是一种单片集成的磁性旋转角度传感器。

该传感器输出的是在集成电路表面水平施加磁场的绝对角度。由于采用了偶极子径向磁铁和磁汇聚板的横向磁场检测方法,因此具有很好的抗轴向错位能力。

该传感器可以通过一个小磁铁和一个IC的简单配置,轻松实现消费类、工业类和汽车类应用的非接触式旋转角度传感器。



AKM provides benefit to end-users with new experience and value

  • Usable in bad environments
  • High-accuracy even in case of misalignment
  • Improvement of accuracy by angle error calibration function

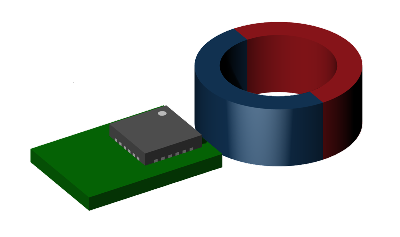

  • Available for hollow shaft motor (Off-Axis configuration)
  • No need for zero return operation by absolute angle detection
Rotation Angle Sensors
Rotation Angle Sensors

AKM has created rotation angle sensors based on its Hall sensor technology accumulated over 30 years, and has continued to improve their performance to this day. Here, we will explain why AKM's rotation angle sensors are chosen.

编码器基础知识

编码器基础知识

This is a series of easy-to-understand technical explanations on the types, principles, mechanisms, and features of various encoders.

Basic Knowledge of Encoder

AKM proposes solutions using its rotation angle sensors that can solve various issues related to rotational detection.

  • Magnetic encoder with excellent environmental tolerance
  • High accuracy magnetic encoder
  • Simple Calibration for angle accuracy of 0.1°
  • Off-Axis configuration enhances the design flexibility
  • Simplifying inventory control and downsizing of the system
  • Absolute angle detection
  • Improving assembly yield and reducing manufacturing costs

Basic Knowledge of Encoder

Application Proposal

This is a story that clearly explains the features of angle sensors through a conversation between a salesperson and his boss.

How to use rotation angle sensors

  • For robot application
  • For industrial sewing machine application

带有故障检测功能

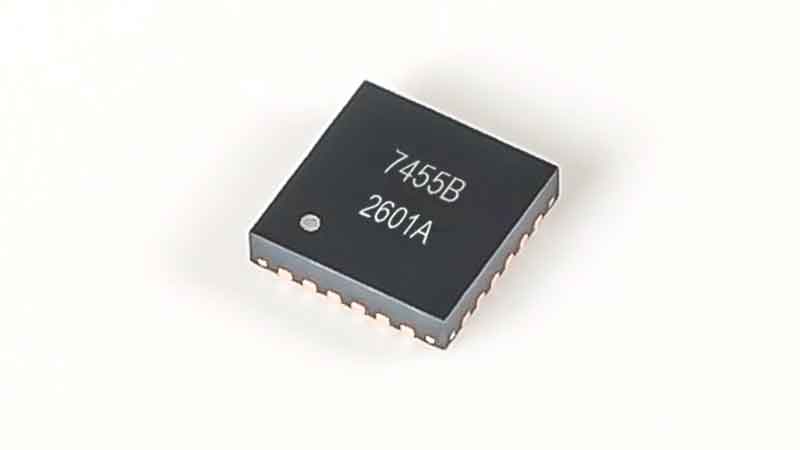

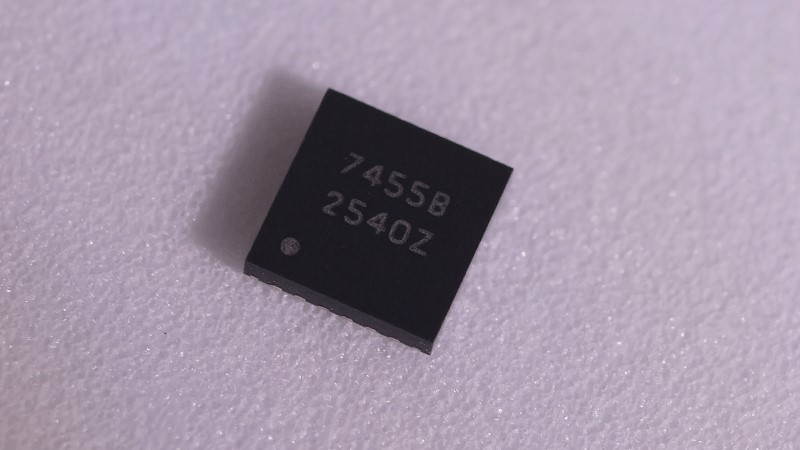

14位旋转角度传感器

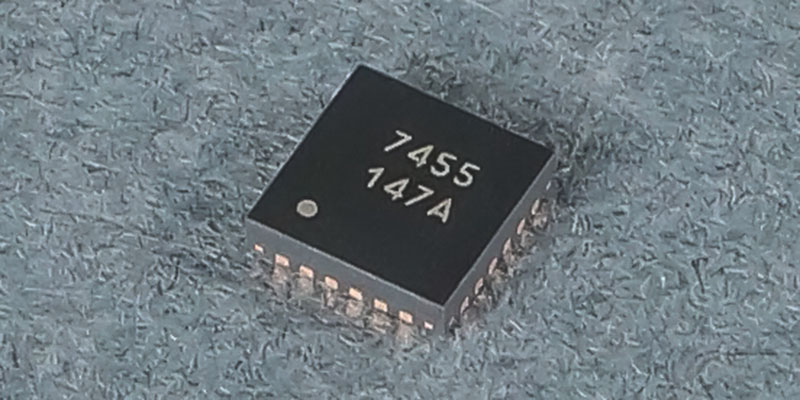

AK7455

AK7455是一款14位绝对旋转角度传感器,适用于离轴应用,具有内置角度误差修正功能。

AK7455还有将传感器磁体以外的磁场作为异常磁场进行识别的功能,有助于系统异常和故障的检测。

新传感器除了传统产品的X-Y平面的磁场检测外,还可以检测离轴配置 (Off-Axis) 的X-Z和Y-Z平面的磁场,从而提高了传感器在电机系统中放置的自由度。

与以往产品相比,扩大了角度计算电路的带宽设置,提高了电机加减速时角度检测的响应速度。

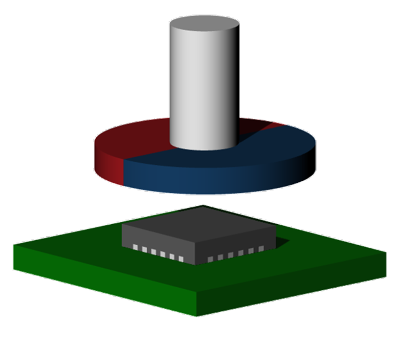

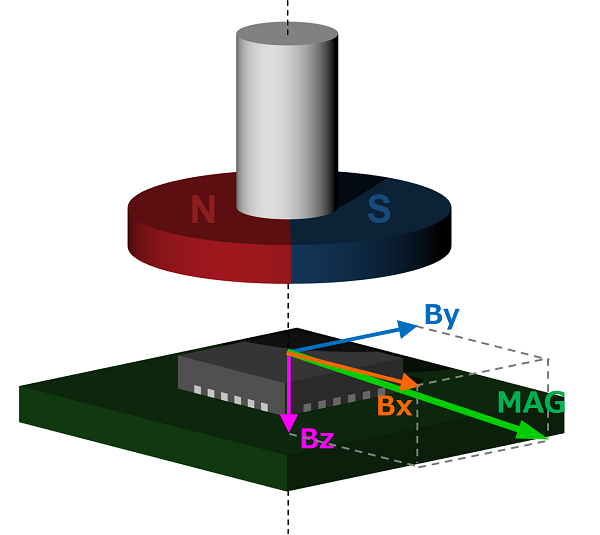

Magnet Selection Guideline for Shaft-End configuration

Application Note of Rotation Angle Sensors

AKM provides the guideline for deciding on the optimal magnet and layout for customers in need, "What kind of magnet should I choose for the magnetic angle sensor?"

You can also contact us through Design Support.
