AK2364
EOL
Two-way Radio Filterless FM IF Detector
Two-way Radio Filterless FM IF Detector
EOL
Description
The AK2364 includes 2nd-Mixer, AGC+BPF, PLL FM detector, noise squelch, and RSSI circuit. This device can eliminate D to G type ceramic filters, quadrature discriminator, and other external components.
Key Features
-
Equipped with variable band IF filter.
Applications
-
Ideal for wireless applications
Specifications
| Part Number |
AK2364 |
|---|---|
| Description |
For analog |
| IF Filter Pass Bandwidth [kHz] |
±10 / ±7.5 / ±6 / ±4.5 |
| IFBPF Output |
Not applicable |
| Sensitivity (12dB SINAD) [dBm] |
-104 |
| (2nd) LO Frequency [MHz] |
45.9 / 50.4 / 57.6 |
| Current Consumption [mA] |
7 |
| Other | |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
28 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

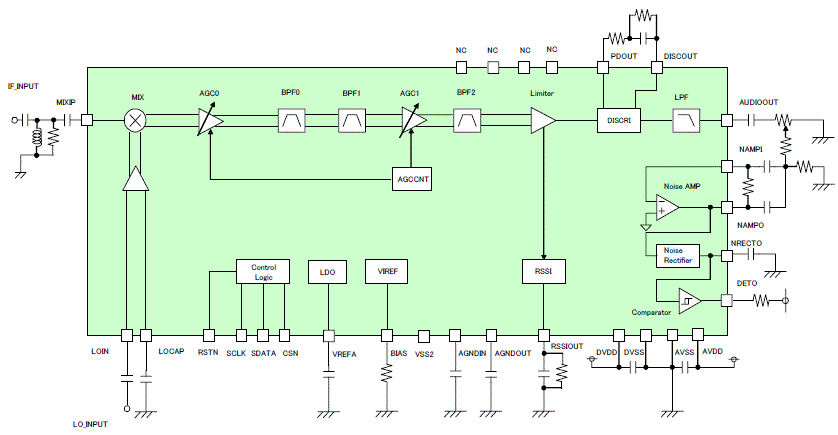

Block Diagram
