AK310H
EOL
Ultra-low Noise Coreless Current Sensor
Ultra-low Noise Coreless Current Sensor
EOL
Description
AK310H is an open-type current sensor using a Hall sensor which outputs the analog voltage in proportion to the AC / DC current. Ultra low noise property is realized by a III-V compound semiconductor Hall element of high sensitivity and signal processing technology. In addition, since AK310H has a coreless structure and does not contain magnetic material, it has no hysteresis and is suitable for audio applications. AK310H is especially suitable for a Motional Feedback system that feedbacks the current of voice coils of the speaker to the amplifier and controls the movement of the voice coils. AK310H adopts an ultra-small coreless package which is compliant with safety standards, suitable for applications such as motor control for industrial equipments. Since AK310H has ultra low noise, it can detect the current by high resolution, which contributes to high-precision torque control of the motor.
Key Features
Ultra low noise. Ultra-low noise is realized by a high-sensitivity compound Hall element and signal processing technology by LSI. Therefore, the detection current resolution is high (because of ultra-low noise), and it is suitable for high-precision torque control of the motor.
Coreless structure. Since it does not contain a magnetic material, it has no hysteresis and is suitable for audio applications. Especially, it is suitable for a system that controls the movement of the voice coil by feeding back the voice coil current of the speaker (Motional Feedback).
Ultra-small coreless package. Adopts ultra-small coreless package that complies with safety standards. We can expect miniaturization of motor control equipment for industrial equipment.
Applications
Motor control for industrial equipment, Voice coil control for speakers, etc.
Specifications
Part Number |
AK310H |
---|---|
Package Type (Mounting style) |
SMD |
Maximum Effective Current [Arms] |
20 |
Linear Sensing Range (MIN.) [A] |
-42 |
Linear Sensing Range (MAX.) [A] |
42 |
Sensitivity [mV/A] |
50 |
Response Time [μsec] |
2 |
Power Supply Voltage (MIN.) [V] |
4.5 |
Power Supply Voltage (TYP.) [V] |
5.0 |
Power Supply Voltage (MAX.) [V] |
5.5 |
Other | |
Operating Temperature [℃] |
-40 to 90 |
Device Package |
SOP |
Number of Pins |
14 |
Product Information
Part Status |
EOL |
---|---|
Pb Free |
Yes |
Halogen Free |
Yes |
MSL |
MSL2a |
Packaging |
TAPE |
JEDEC Standard Packaging |
Compliant |
Minimum Order Quantity [pcs.] |
1000 |
Replacement P/N |

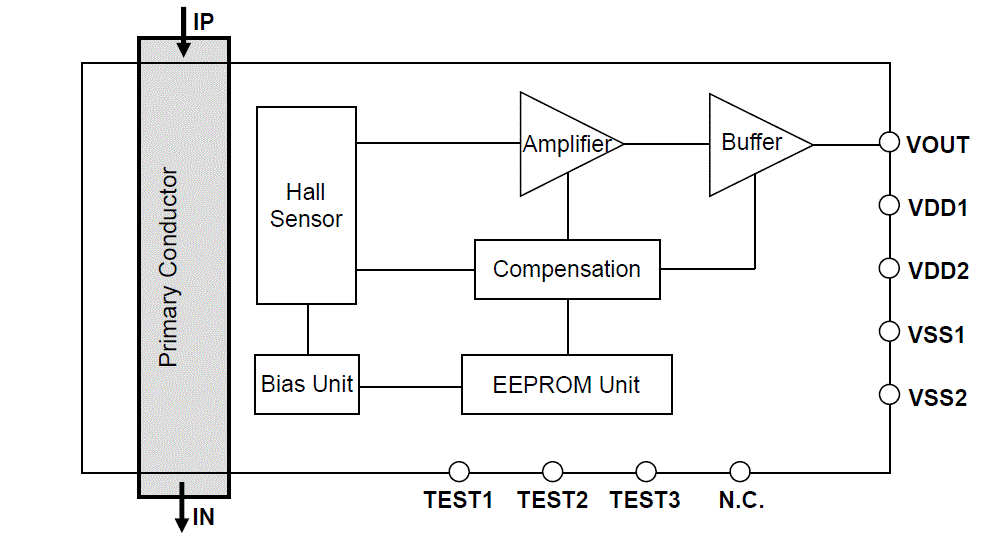

Block Diagram
