AK4103AVF
EOL
192kHz 24-bit 2 ch DIT
192kHz 24-bit 2 ch DIT
EOL
Description
The AK4103AVF is a digital audio transmitter (DIT) which supports data rate up to 192kHz sample rate operation. The AK4103AVF supports AES3, IEC60958, S / PDIF & EIAJ CP1201 interface standards. The AK4103AVF accepts audio data, auxiliary information data and etc, which is then biphase-encoded and driven on to a cable. The audio serial port supports eight formats.
Applications
-
Digital audio equipment, etc.
Specifications
| Part Number |
AK4103AVF |
|---|---|
| Number of Channels (DIR) | |
| Number of Channels (DIT) |
2 |
| Bits [Bit] |
24 |
| fs (MIN.) [kHz] |
28 |
| fs (MAX.) [kHz] |
192 |
| Digital Audio IF RX MUX | |
| Power Supply Voltage (MIN.) [V] |
4.75 |
| Power Supply Voltage (TYP.) [V] |
5.0 |
| Power Supply Voltage (MAX.) [V] |
5.25 |
| Control Interface |
4-wire / HW |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
VSOP |
| Number of Pins |
24 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL2 |
| Packaging |
TAPE |
| Moisture Barrier Packaging |
Based on JEDEC J‑STD‑033 guidelines |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

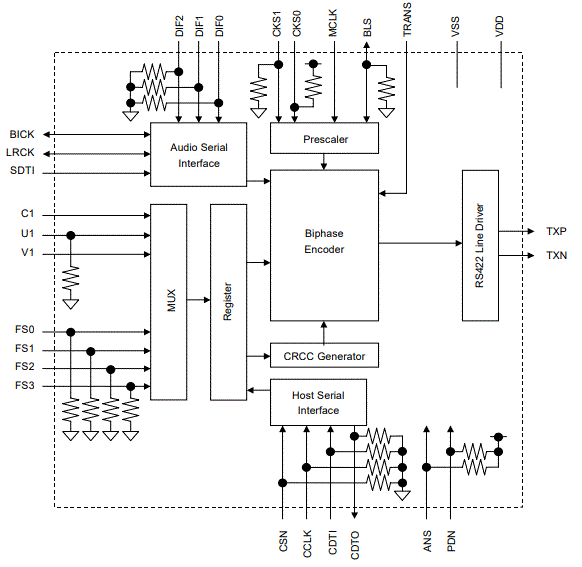

Block Diagram
