AK4482VT

EOL

111dB 192kHz 24-bit 2 ch ΔΣ DAC

111dB 192kHz 24-bit 2 ch ΔΣ DAC

EOL

Description

The AK4482VT is a cost-effective 24-bit DAC for digital audio equipment's. The modulator uses AKM's multi-bit architecture, delivering wide dynamic range.
The AK4482VT has fully differential switched-cap filter outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter.
The AK4482VT support up to 216kHz sampling rate, suitable for BD and AC-3 amplifier systems. It is housed in a space saving 16-pin TSSOP package.

Applications

  •                                 Digital Audio Players, Electronic Musical Instruments, Effects Pedals, Audio Interfaces, USB DACs, CD / SACD Players, AV Receivers, Network Audio, Sound Plate / Bars, Car Audio, Automotive External Amplifiers, Measuring Instruments and Control Systems


Specifications

Part Number
AK4482VT
Number of Channels
2
Analog Output Type
Differential
Bits [bit]
24
THD+N [dB]
-100
S/N [dB]
111
Power Supply Voltage (MIN.) [V]
4.75
Power Supply Voltage (TYP.) [V]
5.0
Power Supply Voltage (MAX.) [V]
5.25
2Vrms Line Driver


Headphone Amplifier


Other


Operating Temperature [℃]
-40 to 85
Device Package
TSSOP
Number of Pins
16

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
3000
Replacement P/N

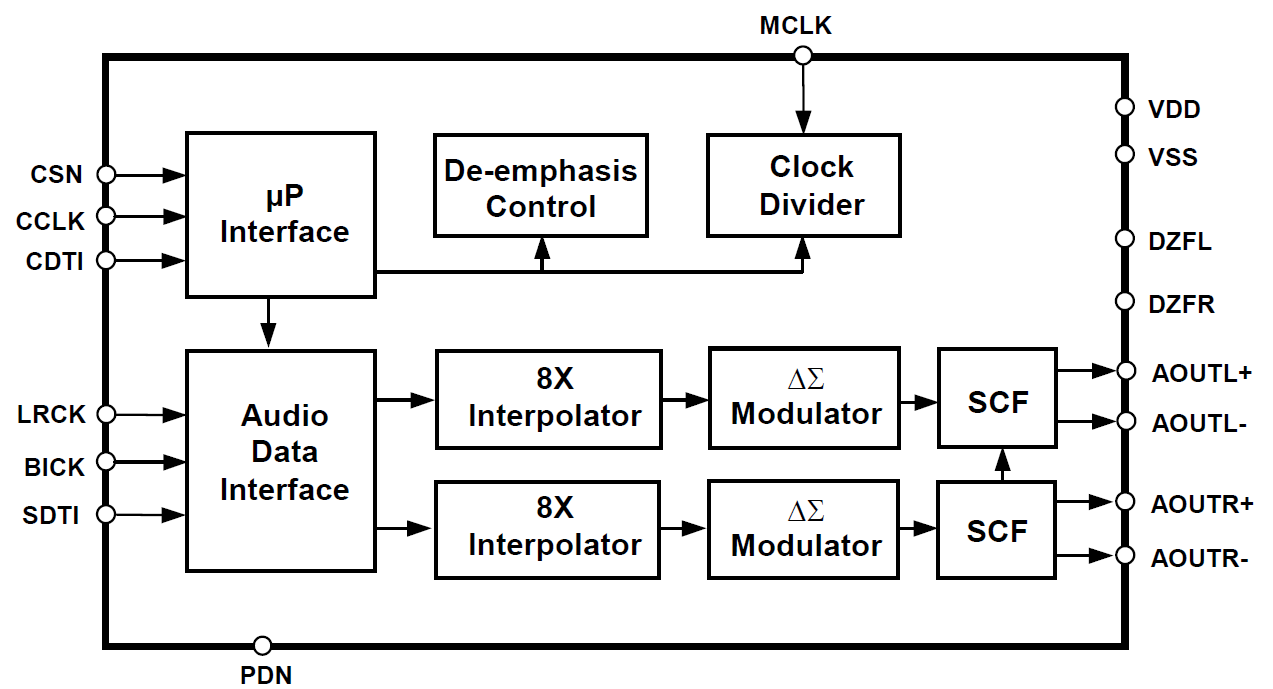

Block Diagram

Block Diagram
