AK8133V

EOL

Multi Clock Generator for Audio

Multi Clock Generator for Audio

EOL

Description

The AK8133 is a member of AKM’s low power multi clock generator family designed for a high quality audio cock with high performance C/N.
The AK8133 generates different frequency clocks from a 27MHz crystal oscillator or external 27MHz clock input. It provides them to up to four outputs configured by pin-setting. Both circuitries of XO and PLL in AK8133 are derived from AKM’s long-term-experienced clock device technology, and enable clock output to perform low jitter and to operate with very low current consumption.
The AK8133 is available in a 16-pin SSOP package.

Key Features

  • Multi Clock Generator for Audio

Applications

  •                                 Personal Video Recorders, Set-Top-Boxes, Multi Media Receivers


Specifications

Part Number
AK8133V
Output Frequency [MHz]
1) 24.576 / 36.864
2) 4.096 / 8.192 / 11.2896 / 12.288 / 16.384 / 22.5792 / 24.576 / 49.152
3) 8.4672 / 12.288 / 16.9344 / 18.432 / 24.576 / 33.8688 / 36.864 / 73.728
4) 16.9344 / 33.8688  5) 27
Input Frequency [MHz]
27
Power Supply Voltage (MIN.) [V]
2.85
Power Supply Voltage (TYP.) [V]
3.3
Power Supply Voltage (MAX.) [V]
3.6
Output Voltage [V]
3.3
Number of Output Channel
5
Output Interface
LVCMOS
Input Interface
XO / LVCMOS
Other
Automotive grade
Operating Temperature [℃]
-40 to 85
Device Package
SSOP
Number of Pins
16

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
2000
Replacement P/N

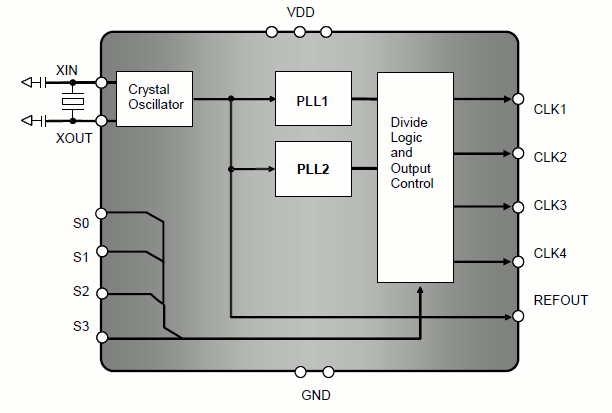

Block Diagram

Block Diagram
