AK8138MV

EOL

Multi Clock Generator for Audio

EOL

Description

The AK8138MV is a member of AKM’s low power multi clock generator family designed for a high quality audio cock with high performance C/N.
The AK8138MV generates different frequency clocks from a 27MHz crystal oscillator or external 27MHz clock input. It provides them to up to four outputs configured by pin-setting. Both circuitries of XO and PLL in AK8138MV are derived from AKM’s long-term-experienced clock device technology, and enable clock output to perform low jitter and to operate with very low current consumption.
The AK8138MV is available in a 16-pin SSOP package.

Key Features

```
Multi Clock Generator for Audio
```

Applications

                                Personal Video Recorders, Set-Top-Boxes, Multi Media Receivers

Specifications

Part Number	AK8138MV
Output Frequency [MHz]	1) 24.576 / Off 2) 2.048 / 4.096 / 8.192 / 11.2896 / 12.288 / 22.5792 / Off 3) 6.144 / 8.192 / 11.2896 / 12.288 / 16.9344 / 22.5792 / Off 4) 8.4672 / 11.2896 / 13.824 / 16.9344 / Off 5) 27
Input Frequency [MHz]	27
Power Supply Voltage (MIN.) [V]	2.85
Power Supply Voltage (TYP.) [V]	3.3
Power Supply Voltage (MAX.) [V]	3.6
Output Voltage [V]	3.3
Number of Output Channel	5
Output Interface	LVCMOS
Input Interface	XO / LVCMOS
Other	Automotive grade
Operating Temperature [℃]	-40 to 85
Device Package	SSOP
Number of Pins	16

Product Information

Part Status	EOL
Pb Free	Yes
Halogen Free	No
MSL	MSL1
Packaging	TAPE
JEDEC Standard Packaging	Compliant
Minimum Order Quantity [pcs.]	2000
Replacement P/N

AK8138MV

Description

Key Features

Applications

Specifications

Product Information

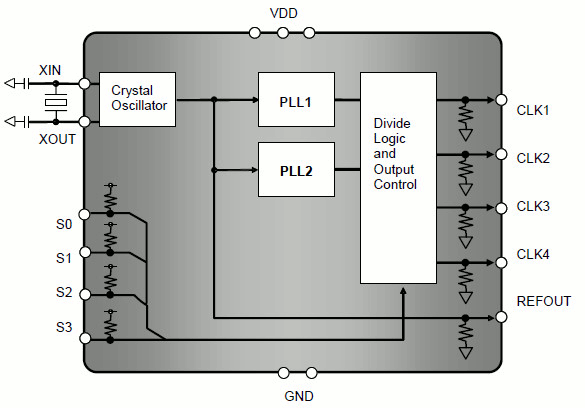

Block Diagram
