EM6781

EOL

Hall Effect ICs (Switch)

Hall Effect ICs (Switch)

EOL

Description

The EM6781 is an ultra-compact bipolar detection switch type Hall IC that integrates a Hall element and a waveform shaping IC.
The EM6781 has low power consumption because the current consumption during operation can be reduced by intermittent drive.

Key Features

  • Both pole sensing operation of magnetic field.
    Since it is bipolar detection (omnipolar), it can detect both S and N magnetic fields (know that it is approaching).
  • Intermittent drive operation.
    Because of the intermittent drive operation, current consumption during operation can be reduced.

Applications

  •                                 Rotation detection, position detection, open / close detection, current detection, direction detection, etc.


Specifications

Part Number
EM6781
Type
Omnipolar
Power Supply Voltage (MIN.) [V]
1.6
Power Supply Voltage (TYP.) [V]
1.85
Power Supply Voltage (MAX.) [V]
5.5
Sensitivity Bop [mT]
|3.0|
Sensitivity Brp [mT]
|2.2|
Output stage
CMOS
Current Consumption (TYP.) [mA]
0.0065
Current Consumption (MAX.) [mA]
0.009
Drive System
Micro Power
Other


Operating Temperature [℃]
-30 to 85
Device Package
SOT
Number of Pins
4

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL


Packaging
TAPE
JEDEC Standard Packaging
Not Compliant
Minimum Order Quantity [pcs.]


Replacement P/N

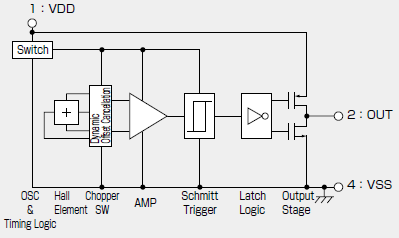

Block Diagram

Block Diagram
