AK4619VN
MP
192-KHz, Four-channel Audio CODEC for Automotive Head Unit.
192-KHz, Four-channel Audio CODEC for Automotive Head Unit.
MP
Description
The AK4619VN is a single chip audio CODEC supporting up to 192KHz sampling frequency. The analog inputs support differential, single-ended or pseudo-differential. The analog outputs support single-ended. The audio serial interface supports TDM format to connect with external devices easily. Pairing the AK4619VN with the AKM’s DSPs or SoC(System on Chip) provides a solution as an analog front-end of car audio systems.
Key Features
-
Differential, pseudo-differential or single-ended inputs support
-
Internal digital Loop Path (Analog inputs-ADC-DAC-Analog outputs)
Applications
-
Ideal for Car Audio, Car Navigation, Display Audio, Audio Interface, Electronic Musical Instruments.
Specifications
| Part Number |
AK4619VN |
|---|---|
| Number of Channels (AD) |
4 |
| Number of Channels (DA) |
4 |
| Bits [bit] |
24 (AD) 32 (DA) |
| S/N (AD) [dB] |
106 |
| S/N (DA) [dB] |
108 |
| THD+N (AD) [dB] |
-95 |
| THD+N (DA) [dB] |
-91 |
| Power Supply Voltage (MIN.) [V] |
1.7 / 3.0 |
| Power Supply Voltage (TYP.) [V] |
3.3 / 3.3 |
| Power Supply Voltage (MAX.) [V] |
3.6 / 3.6 |
| Microphone Amplifier |
Yes |
| Speaker Amplifier | |
| Other |
Automotive grade, TDM I/F |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
HWQFN |
| Number of Pins |
32 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

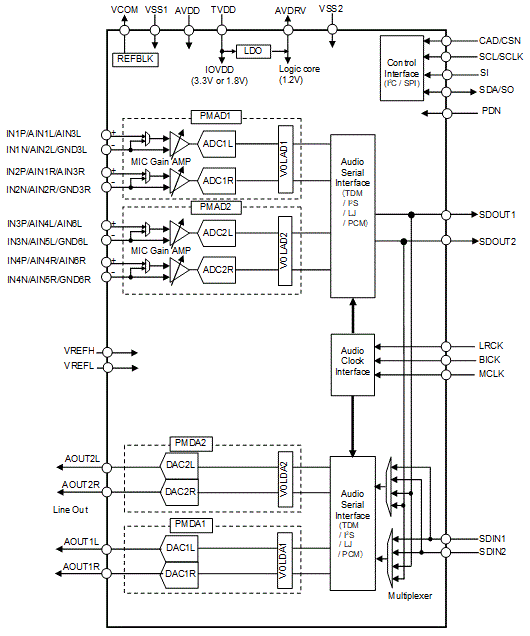

Block Diagram
Download
AK4619VN Datasheet
English [200900082-E-00]
(73 Pages PDF: 2.70MB)
Product Guide for CarInfo Audio Components
English [C021-E-01]
(13 Pages PDF: 1.87MB)
AKD4619VN EVB Manual
English [KM134006]
(77 Pages PDF: 6.27MB)
