产品系列
电子罗盘
微型封装
用于移动设备的三轴电子罗盘 符合I3C总线接口
AK09919C
符合I3C总线接口 FIFO16步
AK09919C是AKM前一代产品AK09918C的向上兼容版本。AK09919C保持了AK09918C的尺寸和引脚兼容性，同时增加了I3C总线接口和FIFO16步等新功能。
AK09919C封装是0.4毫米间距的WL-CSP。尺寸为0.76 x 0.76 x 0.5毫米，由4个引脚组成：2个引脚用于供电，2个引脚用于I3C/I2C通信。
微型封装
面向智能手机的三轴电子罗盘

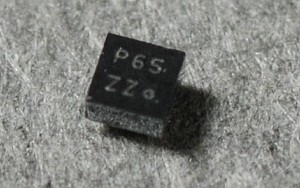

AK09918C
AK09918C在保持前一代产品AK09916C的高性能的同时，使用了我们有史以来最小封装 (0.76mm×0.76mm×0.5mm)，仅是前一代产品AK09916C的面积的63%。
封装为4引脚WL-CSP (2个电源引脚和2个I2C通信引脚)，引脚间距为0.4mm。
规格比较
| Product Name | AK09919C 3-axis electronic compass |
AK09918C 3-axis electronic compass |
AK09917D 3-axis electronic compass |
AK09915C 3-axis electronic compass |
||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| Sensitivity | [μT/LSB] | 0.15 | 0.15 | 0.3* / 0.15 | 0.15 | |
| Output Data Resolution | [bit] | 16 | 16 | 16 | 16 | |
| Measurement Range | [μT] | ±4,900 | ±4,900 | ±4,900 | ±4,900 | |
| Maximum ODR | [Hz] | 100 | 100 | 200* / 100 |
200* / 100** |
|
| Current Consumption |
@10Hz ODR | [mA] | 0.1 | 0.1* / 0.15 | 0.1* / 0.19** | |
| @100Hz ODR | [mA] | 1.1 | 1.1 | 0.6* / 1.1 | 0.9* / 1.8** | |
| Power Supply Voltage |
Vdd | [V] | 1.65 to 1.95 | 1.65 to 1.95 | 1.65 to 1.95 | 1.7 to 3.6 |
| Vid | [V] | N/A | N/A | N/A | 1.65 to Vdd | |
| Interface | I2C-bus / I3C-bus | I2C-bus | I2C-bus / I3C-bus | I2C-bus / 4-wire SPI | ||
| FIFO | [set of data] | 16 | - | 32 | 32 | |
| Data Ready Pin | DRDY: CMOS output |
- | - | - | Yes | |
| ODDRDY: open-drain output |
- | - | Yes | - | ||
| Package | Type | WL-CSP | WL-CSP | WL-CSP | WL-CSP | |
| Size | [mm] | 0.76 × 0.76 × 0.5 | 0.76 × 0.76 × 0.5 | 1.2 × 0.8 × 0.5 | 1.6 × 1.6 × 0.5 | |
| Number of pins | 4 | 4 | 5 | 14 | ||
| Notes | (*Low power drive) | (*Low power drive) (**Low noise drive) |
||||
Selection Table
Part Number |
Part Status |
Sensitivity (TYP.) [μT/LSB] |
Analog Power Supply Voltage (MIN.) [V] |
Analog Power Supply Voltage (TYP.) [V] |
Analog Power Supply Voltage (MAX.) [V] |
Digital Interface Power Supply Voltage (MIN.) [V] |
Current Consumption Power-down (TYP.) [μA] |
Current Consumption Measurement (TYP.) [μA] |
Control Interface |
Operating Temperature [℃] |
Device Package |
Number of Pins |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
AK09915C |
NRND |
0.15 |
1.7 |
3.6 |
1.65 to VDD |
3 |
900 @ 100Hz |
I²C / 4-wire SPI |
-30 to 85 |
WLCSP |
14 |
|
AK09917D |
MP |
0.15 / 0.30 |
1.65 |
1.95 |
1 |
1100 / 600 @100Hz |
I²C / I3C |
-30 to 85 |
WLCSP |
5 |
||
AK09918C |
MP |
0.15 |
1.65 |
1.8 |
1.95 |
1100@100Hz |
I²C |
-30 to 85 |
WLCSP |
4 |
||
AK09919C |
MP |
0.15 |
1.65 |
1.8 |
1.95 |
1 |
1100 @100Hz |
I3C/I²C |
-30 to 85 |
WLCSP |
4 |
