Lineup
Electronic Compass
Ultra-compact package
3-axis Electronic Compass for Mobile Devices with I3C bus interface compliance
AK09919C
I3C bus interface compliance with FIFO 16 steps
AK09919C is upward compatible with AKM's previous product AK09918C.
It incorporates I3C bus interface and FIFO 16 steps as new features while maintaining AK09918C footprint and pin compatibility.
AK09919C is packaged in 4-pin WL-CSP with 0.4 mm ball-pitch. Size is 0.76 mm × 0.76 mm × 0.5 mm and 2 pins for power supply, 2 pins for I3C/I2C communication.
Ultra-compact package
3-axis Electronic Compass for Mobile Devices

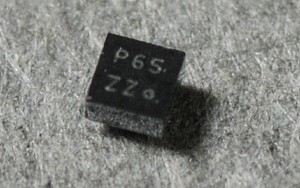

AK09918C
AK09918C realizes the smallest size 0.76 mm × 0.76 mm × 0.5 mm (63% size of the conventional product AK09916C) of our company while maintaining the high performance of the conventional product AK09916C.
It is housed in 0.4 mm pitch 4-pin WL-CSP package. (power supply 2 pins, 2 pins for I2C communication)
Specifications Comparison
| Product Name | AK09919C 3-axis electronic compass |
AK09918C 3-axis electronic compass |
AK09917D 3-axis electronic compass |
AK09915C 3-axis electronic compass |
||
|---|---|---|---|---|---|---|
 |
 |
 |
 |
|||
| Sensitivity | [μT/LSB] | 0.15 | 0.15 | 0.3* / 0.15 | 0.15 | |
| Output Data Resolution | [bit] | 16 | 16 | 16 | 16 | |
| Measurement Range | [μT] | ±4,900 | ±4,900 | ±4,900 | ±4,900 | |
| Maximum ODR | [Hz] | 100 | 100 | 200* / 100 |
200* / 100** |
|
| Current Consumption |
@10Hz ODR | [mA] | 0.1 | 0.1* / 0.15 | 0.1* / 0.19** | |
| @100Hz ODR | [mA] | 1.1 | 1.1 | 0.6* / 1.1 | 0.9* / 1.8** | |
| Power Supply Voltage |
Vdd | [V] | 1.65 to 1.95 | 1.65 to 1.95 | 1.65 to 1.95 | 1.7 to 3.6 |
| Vid | [V] | N/A | N/A | N/A | 1.65 to Vdd | |
| Interface | I2C-bus / I3C-bus | I2C-bus | I2C-bus / I3C-bus | I2C-bus / 4-wire SPI | ||
| FIFO | [set of data] | 16 | - | 32 | 32 | |
| Data Ready Pin | DRDY: CMOS output |
- | - | - | Yes | |
| ODDRDY: open-drain output |
- | - | Yes | - | ||
| Package | Type | WL-CSP | WL-CSP | WL-CSP | WL-CSP | |
| Size | [mm] | 0.76 × 0.76 × 0.5 | 0.76 × 0.76 × 0.5 | 1.2 × 0.8 × 0.5 | 1.6 × 1.6 × 0.5 | |
| Number of pins | 4 | 4 | 5 | 14 | ||
| Notes | (*Low power drive) | (*Low power drive) (**Low noise drive) |
||||
Selection Table
Part Number |
Part Status |
Sensitivity (TYP.) [μT/LSB] |
Analog Power Supply Voltage (MIN.) [V] |
Analog Power Supply Voltage (TYP.) [V] |
Analog Power Supply Voltage (MAX.) [V] |
Digital Interface Power Supply Voltage (MIN.) [V] |
Current Consumption Power-down (TYP.) [μA] |
Current Consumption Measurement (TYP.) [μA] |
Control Interface |
Operating Temperature [℃] |
Device Package |
Number of Pins |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
▲
▼
|
AK09915C |
NRND |
0.15 |
1.7 |
3.6 |
1.65 to VDD |
3 |
900 @ 100Hz |
I²C / 4-wire SPI |
-30 to 85 |
WLCSP |
14 |
|
AK09917D |
MP |
0.15 / 0.30 |
1.65 |
1.95 |
1 |
1100 / 600 @100Hz |
I²C / I3C |
-30 to 85 |
WLCSP |
5 |
||
AK09918C |
MP |
0.15 |
1.65 |
1.8 |
1.95 |
1100@100Hz |
I²C |
-30 to 85 |
WLCSP |
4 |
||
AK09919C |
MP |
0.15 |
1.65 |
1.8 |
1.95 |
1 |
1100 @100Hz |
I3C/I²C |
-30 to 85 |
WLCSP |
4 |
