AK4528VM

EOL

High Performance 96kHz 24-bit Audio CODEC

High Performance 96kHz 24-bit Audio CODEC

EOL

Description

The AK4528VM is a high performance 24-bit CODEC for the 96kHz recording system. The ADC has an Enhanced Dual Bit architecture with wide dynamic range. The DAC uses the new developed Advanced Multi Bit architecture and achieves low outband noise and high jitter tolerance by use of SCF (switched capacitor filter) techniques.

Applications

  •                                 Digital audio equipment, etc.


Specifications

Part Number
AK4528VM
Number of Channels (AD)
2
Number of Channels (DA)
2
Bits [bit]
24
S/N (AD) [dB]
108
S/N (DA) [dB]
110
THD+N (AD) [dB]
-94
THD+N (DA) [dB]
-94
Power Supply Voltage (MIN.) [V]
4.75
Power Supply Voltage (TYP.) [V]
5.0
Power Supply Voltage (MAX.) [V]
5.25
Microphone Amplifier


Speaker Amplifier


Other


Operating Temperature [℃]
-40 to 85
Device Package
SSOP
Number of Pins
28

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

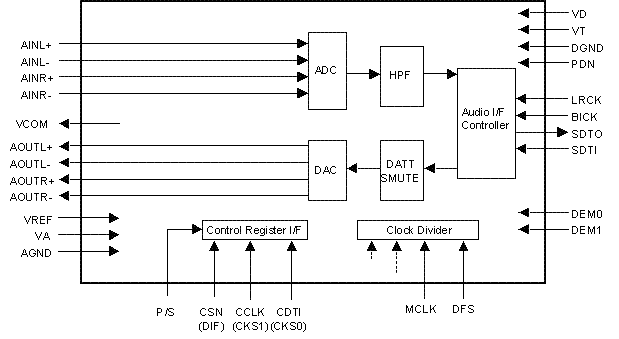

Block Diagram

Block Diagram
