AP1153ADSXX
EOL
Safety device Built-in overcurrent protection circuit and overheat protection circuit.
Safety device Built-in overcurrent protection circuit and overheat protection circuit.
EOL
Description
AP1153ADSXX is a silicon monolithic bipolar structure IC. It is a low saturation regulator IC with on - off control that can stably supply 100mA output current. The output voltage of AP1153ADSXX is trimmed with high precision and can be set between 1.3V and 5.0V in 0.1V steps to select the optimal voltage. A small ceramic capacitor of 0.22μF can be used for the output side capacitor. The IC has a built-in overcurrent sensor circuit and overheat protection circuit.
Key Features
-
Safety device Built-in overcurrent protection circuit and overheat protection circuit.
Applications
-
Automotive accessory equipment, Any Electronic Equipment, Battery Powered Systems, Mobile Communication, etc.
Specifications
| Part Number |
AP1153ADSXX |
|---|---|
| Input Voltage (MIN.) [V] |
2.1 |
| Input Voltage (TYP.) [V] | |
| Input Voltage (MAX.) [V] |
14 |
| Output Voltage (MIN.) [V] |
4.925 |
| Output Voltage (TYP.) [V] |
5 |
| Output Voltage (MAX.) [V] |
5.075 |
| Current Output (MAX.) [A] |
0.1 |
| Variable Output | |
| Functions |
Enable Control |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
SOP |
| Number of Pins |
5 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL1 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
3000 |
| Replacement P/N |

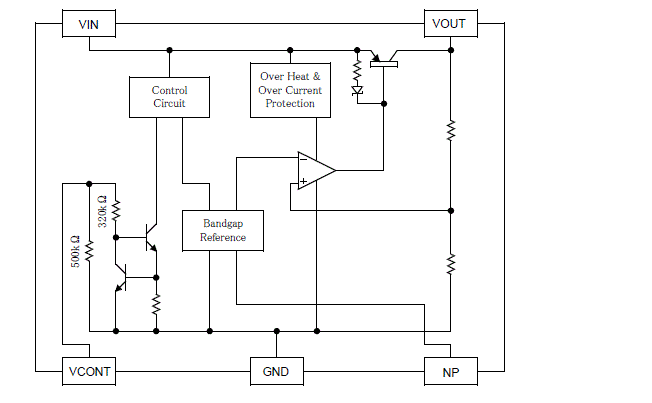

Block Diagram
