AK7757VQ
EOL
Audio DSP with 24-bit 3 ch ADC + 4 ch DAC + MIC Amp
Audio DSP with 24-bit 3 ch ADC + 4 ch DAC + MIC Amp
EOL
Description
The AK7757VQ is a digital signal processor with an integrated 4 channel DAC, a stereo ADC with input selector, a mono ADC and an integrated digital audio interface. The audio DSP has 1536step/fs (at 48kHz sampling) parallel arithmetic operation performance. As the AK7757VQ is a RAM based DSP, it is programmable for user requirements to realize the audio effects process or the proprietary high-performance HF. The AK7757VQ is housed in a 48-pin LQFP which is a small package to save the PCB space.
Key Features
-
DSP with Codec suitable for the automotive devices
Applications
-
Automotive device applications etc.
Specifications
| Part Number |
AK7757VQ |
|---|---|
| MAX fs [kHz] |
48 |
| Number of Channels (AD) |
3 |
| Number of Channels (DA) |
4 |
| S/N (AD) [dB] |
96 |
| S/N (DA) [dB] |
107 |
| Number of Channels (DSP Input) |
7 |
| Number of Channels (DSP Output) |
10 |
| Clock Speed (MAX.) [MHz] |
73.529 |
| Data RAM [Word] |
10240 |
| Power Supply Voltage 1 (MIN.) [V] |
3.0 |
| Power Supply Voltage 1 (TYP.) [V] |
3.3 |
| Power Supply Voltage 1 (MAX.) [V] |
3.6 |
| Power Supply Voltage 2 (MIN.) [V] |
3.0 |
| Power Supply Voltage 2 (TYP.) [V] |
3.3 |
| Power Supply Voltage 2 (MAX.) [V] |
3.6 |
| Power Supply Voltage 3 (MIN.) [V] |
1.7 |
| Power Supply Voltage 3 (TYP.) [V] |
1.8 |
| Power Supply Voltage 3 (MAX.) [V] |
1.9 |
| Power Supply Voltage 4 (MIN.) [V] | |
| Power Supply Voltage 4 (TYP.) [V] | |
| Power Supply Voltage 4 (MAX.) [V] | |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
LQFP |
| Number of Pins |
48 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL3 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

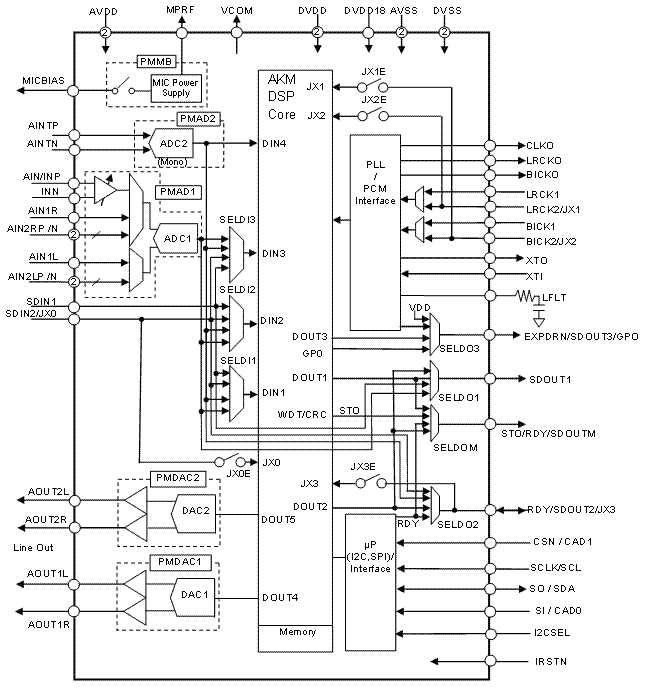

Block Diagram
