Tri-axis Magnetic Sensors

There is an increasing demand for sensing functions to monitor an object’s position.  AKM has developed a tri-axis magnetic sensor that is able to detect magnetic signals in X, Y, and, Z allowing for a magnetic vector to be analyzed in real time. Low power, 16bit accuracy and wide measurement range makes this technology ideal for AR/VR gaming, security camera positioning, True Wireless Stereo (TWS), smart home, smart locks, and door/window open/close detection.
This technology can also be utilized for angle detection of rolling or folding screens, postion detection of popup cameras in smart phones, tablets, and TV's.

Products

What makes AKM different ?

What makes AKM different ?

We introduce why AKM's tri-axis magnetic sensors has been chosen by a large number of customers.

  • Why use tri-axis magnetic sensors ?
  • Solve issues in design like a consultant

Issue & Solution

We propose solutions based on AKM's tri-axis magnetic sensors that can solve a variety of sensing issues of factory automation equipment.

Applications

Use cases of S-cube solutions

Introduction of application cases utilizing S-cube sensors

  • Switch Cube
  • Magnetic metal detection
  • Door Opening / Closing Detection

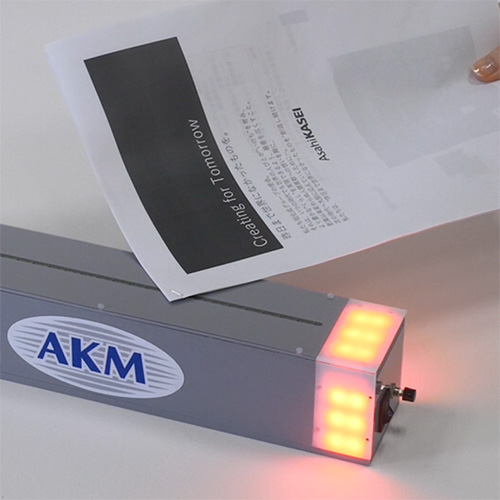

  • Location Detection with LED
  • Magnetic Motion Tracking System

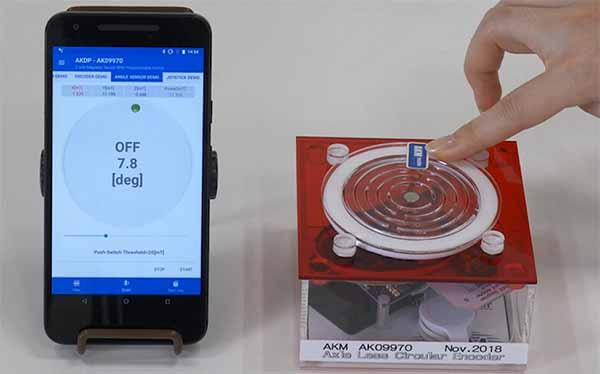

  • Rotation and Push Interface
  • Hand Motion Controller

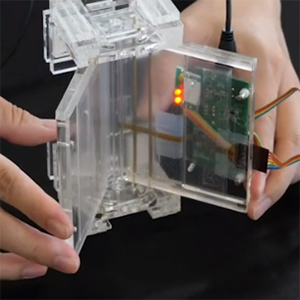

  • Folding Angle Detection

Lineup

  • Tri-axis Magnetic Smart Switch
  • Tri-axis Magnetic Sensor

AK09973D

AK09973D is ideal for non-contact detection of relative distances, postures and angles with magnets using in combination with a magnet.
Utilizing the magnetic threshold interrupt function and ultra-low power consumption, it is also suitable for battery-powered security monitoring devices.

AK09940A

AK09940A is a digital output ultra-compact 3-axis electronic magnetometer that uses TMR magnetic sensor elements to achieve world-class ultra-low noise performance.
Metal flaw or metal foreign object detection, as well, it might be able to be utilized in various fields magnetic detection has not been made.

Column

"Mr. Cube" technology column

In this column, Mr. Cube, a new favorite and sensor enthusiast, will introduce many of Tech topics of interest to everyone in an easy-to-understand manner, with a great deal of personal view.

  • #01 Hello! AR world
  • #02 Wide spreading IoT technology into society
  • #03 Towards the world of "After COVID-19"

Design Support

Document Download

  • Datasheet
  • Product Brief
