AK2363
EOL
2 Way Radio Signaling LSI
2 Way Radio Signaling LSI
EOL
Description
The AK2363 is a radio signaling IC that integrates an MSK modem and DTMF receiver on a single chip. The AK2363 supports the MSK modem 1200-bit / s 2400-bit / s, and the demodulator detects a 16-bit frame pattern. The DTMF receiver has a normal mode and a high-speed sensitivity mode, and the input signal detection level can be switched.
Key Features
-
MSK modem and DTMF receiver in one chip
Applications
-
Wireless devices, etc.
Specifications
| Part Number |
AK2363 |
|---|---|
| Audio Filter (0.3 to 3.0kHz) | |
| Emphasis / Compandor | |
| Scrambler | |
| MSK Modem (1.2k / 2.4kbps) |
Yes |
| CTCSS | |
| DTMF Receiver |
Yes |
| 8bit DAC (Volume) | |
| Master Clock [MHz] |
3.6864 / *2 / *3 / *4 (*: Multiplication) |
| Other | |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
24 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

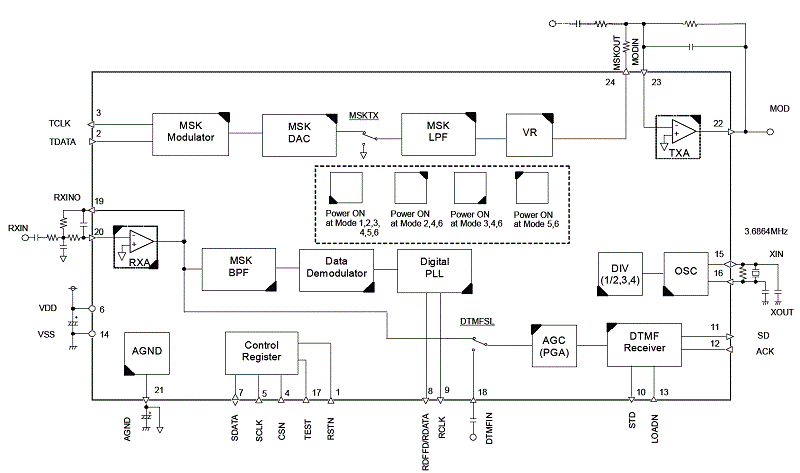

Block Diagram
