Packing information

AKM original packing

The packing design which can maintain the quality in spite of a transport method and the environment is being done.

Corresponding to JEDEC standard

The packing specification of LSI parts in AKM are comply with the standard of JEDEC JEDEC (J-STD-033).

AKM will change inner label which apply to the products shipped from Oct 2016.

Part number

Packing classification indexes of a part number are not included in this website.

Example: "AK□□□□"

When ordering, part numbers are followed by the packing classification index: L, E1 and E2, which represents the taping direction.

Example: "AK□□□□-L", "AK□□□□-E1", "AK□□□□-E2"

[Note]

You may sometimes see "P" or "-8" character in AKM part number. This type of the part number is internally used and it is the same product as the one without these characters.

Example: "AK□□□□-8" and "AK□□□□" are the same products.

Taping direction

Packing classification indexes at the end of a part number indicate the taping direction.

"L"

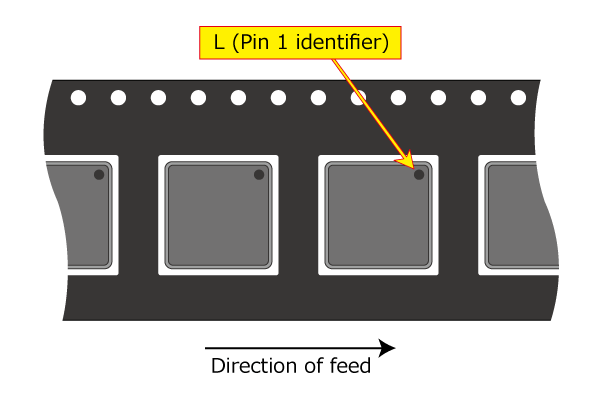

Packing classification index: L

Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)

"E1"

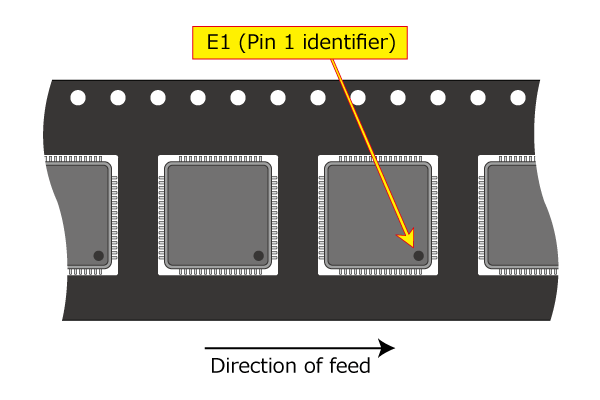

Packing classification index: E1

Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the opposite side of the feed hole.)

"E2"

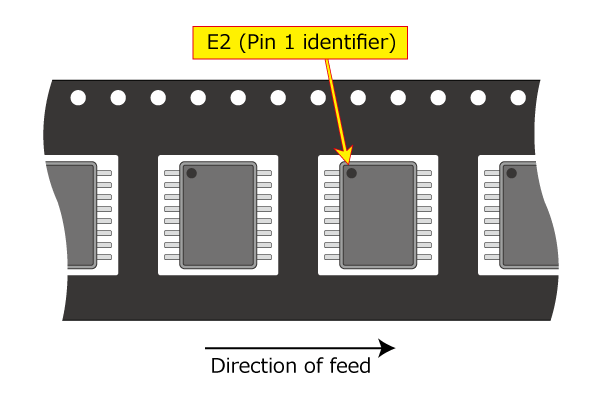

Packing classification index: E2

Pin 1 identifier is behind you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)

JEDEC standard

Label

A new label that complies with JDEC standard will be used on the production from Oct. 2016.

Label

Code	Description
(P) P/N	Customer Parts Number
(Q) Qty	Quantity
(9D) D/C	Date Code
(1T) SID	Reel ID
MSL	Moisture Sensitivity Level
PEAK	Maximum reflow temperature
S/L	Shelf Life
F/L	Floor Life
SEAL DATE	Packing date
