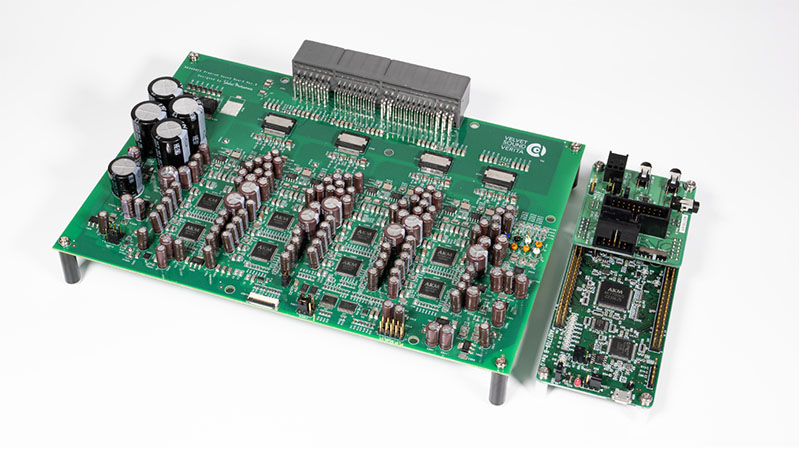

AK7709VQ

Multi Core DSPs and SRCs

Description

The AK7709VQ is a highly integrated digital signal processor, including 8 stereo and 4 monaural sampling rate converters supporting sampling frequency up to 192kHz, a DIR, a DIT and two types of DSPs for Audio and Voice processing. The DSP1 and DSP2 support 491.52MHz operation clock and are optimized for C-language support. AKDSP1, AKDSP2, AKDSP3 and AKDSP4 have 10240 step/fs (when fs=48kHz) processing power.
The AK7709VQ is able to process multiple sample rates simultaneously. This function is suitable for full bandwidth audio and voice processing, such as hands-free function along with audio. This simultaneous processing is enabled because the two types of DSPs can work on different but synchronized sampling frequencies. The AK7709VQ is a RAM based DSP, so it can be freely programmed for user requirements, such as acoustic effects and proprietary high-performance hands-free function.

Key Features

Multi core DSP and SRC suitable for the automotive devices.

```
HiFi 4 DSP
```

Applications

                                Automotive device applications etc.

Specifications

Part Number	AK7709VQ
Features	DSP
Clock Speed MAX. [MHz]	491.52
Number of DSP Core	2 core HiFi 4, 4 core AKDSP
Number of ASRC (channel)	20
Number of Digital I/O Channel Max. (port, channel)	11, 152
Interface	I²C, SPI, QuadSPI, Self-Boot, JTAG, UART
DIT	enable
DIR	enable
Number of Channels (AD, DA)	-
MAX fs [kHz] (AD/DA)	-
Other	Automotive grade
Operating Temperature [℃]	-40 to 105
Device Package	HLQFP
Number of Pins	100

Product Information

Part Status	MP
Pb Free	Yes
Halogen Free	Yes
MSL	MSL2
Packaging	TRAY
Moisture Barrier Packaging	Based on JEDEC J‑STD‑033 guidelines
Minimum Order Quantity [pcs.]	900
Replacement P/N
