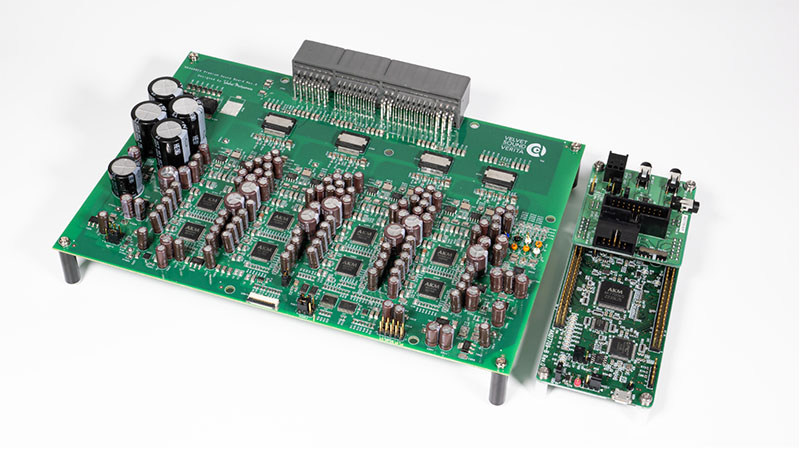

AK7709VQ

Multi Core DSPs and SRCs

Description

The AK7709VQ is a highly integrated digital signal processor, including 8 stereo and 4 monaural sampling rate converters supporting sampling frequency up to 192kHz, a DIR, a DIT and two types of DSPs for Audio and Voice processing. The DSP1 and DSP2 support 491.52MHz operation clock and are optimized for C-language support. AKDSP1, AKDSP2, AKDSP3 and AKDSP4 have 10240 step/fs (when fs=48kHz) processing power.
The AK7709VQ is able to process multiple sample rates simultaneously. This function is suitable for full bandwidth audio and voice processing, such as hands-free function along with audio. This simultaneous processing is enabled because the two types of DSPs can work on different but synchronized sampling frequencies. The AK7709VQ is a RAM based DSP, so it can be freely programmed for user requirements, such as acoustic effects and proprietary high-performance hands-free function.

Key Features

Multi core DSP and SRC suitable for the automotive devices.

```
HiFi 4 DSP
```

Applications

                                Automotive device applications etc.

Specifications

Part Number	AK7709VQ
MAX fs [kHz]	192
Number of Channels (AD)	-
Number of Channels (DA)	-
S/N (AD) [dB]	-
S/N (DA) [dB]	-
Number of Channels (DSP Input)	152 (TDM)
Number of Channels (DSP Output)	152 (TDM)
Clock Speed (MAX.) [MHz]	491.52
Data RAM [Word]	1152KB (DSP1-2) 108K (AKDSP1-4. Word: 37-bit)
Power Supply Voltage 1 (MIN.) [V]	0.85
Power Supply Voltage 1 (TYP.) [V]	0.90
Power Supply Voltage 1 (MAX.) [V]	0.95
Power Supply Voltage 2 (MIN.) [V]	1.7
Power Supply Voltage 2 (TYP.) [V]	3.3
Power Supply Voltage 2 (MAX.) [V]	3.47
Power Supply Voltage 3 (MIN.) [V]	1.7
Power Supply Voltage 3 (TYP.) [V]	3.3
Power Supply Voltage 3 (MAX.) [V]	3.47
Power Supply Voltage 4 (MIN.) [V]	3.13
Power Supply Voltage 4 (TYP.) [V]	3.3
Power Supply Voltage 4 (MAX.) [V]	3.47
Other	Automotive grade
Operating Temperature [℃]	-40 to 105
Device Package	HLQFP
Number of Pins	100
