AK4621EF
MP
115dB 192kHz 24-bit 2 ch ADC & 2 ch DAC with Low Latency Digital Filter
115dB 192kHz 24-bit 2 ch ADC & 2 ch DAC with Low Latency Digital Filter
MP
Description
The AK4621EF is a high performance 24-bit CODEC that supports up to 192kHz recording and playback. The on-board analog-to-digital converter has a high dynamic range due to AKM’s Enhanced Dual-Bit architecture. The DAC utilizes AKM’s Advanced Multi-Bit architecture that achieves low out-of-band noise and high jitter tolerance through the use of Switched Capacitor Filter (SCF) technology. The AK4621EF is suitable for Pro Audio sound cards, Digital Audio Workstations, DVD-R, hard disk, CD-R recording/playback systems, and musical instrument recording.
Applications
Professional sound cards, digital audio workstations, electronic musical instruments, etc.
Specifications
Part Number |
AK4621EF |
---|---|
Number of Channels (AD) |
2 |
Number of Channels (DA) |
2 |
Bits [bit] |
24 |
S/N (AD) [dB] |
115 |
S/N (DA) [dB] |
115 |
THD+N (AD) [dB] |
-102 |
THD+N (DA) [dB] |
-100 |
Power Supply Voltage (MIN.) [V] |
4.75 / 3.0 |
Power Supply Voltage (TYP.) [V] |
5.0 / 3.3 |
Power Supply Voltage (MAX.) [V] |
5.25 / 3.6 |
Microphone Amplifier | |
Speaker Amplifier | |
Other | |
Operating Temperature [℃] |
-10 to 70 |
Device Package |
VSOP |
Number of Pins |
30 |
Product Information
Part Status |
MP |
---|---|
Pb Free |
Yes |
Halogen Free |
Yes |
MSL |
MSL2 |
Packaging |
TAPE |
JEDEC Standard Packaging |
Compliant |
Minimum Order Quantity [pcs.] |
1000 |
Replacement P/N |

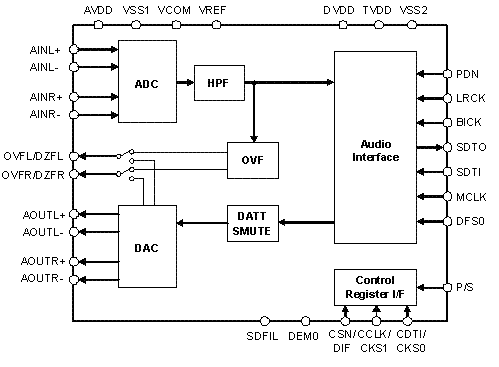

Block Diagram
