AK09973D

MP

Ultra-small Tri-axis Magnetic Smart Switch

Ultra-small Tri-axis Magnetic Smart Switch

MP

Description

The AK09973D is  a 3-axis magnetic sensor IC, that utilizes Hall sensor technology.
The AK09973D is equipped with a wide-range magnetic sensor that detects a large magnetic field, a sensor driver, a signal amplifier, a calculation logic, etc., and outputs the magnitude of the magnetic field in each of X,Y,Z axes as digital value. In addition, it has a switch function to detect magnetic events according to the threshold setting and notify the outside.
The AK09973D is suitable for use in combination with magnets to detect the relative distance and orientation of the two.
It is ideal for detecting the shape of foldable and screen-rollable smartphones, and fir ultra-low consumption security applications that utilize the switch function.

Key Features

  • Upward compatible with AK09970D
  • Magnetic measurement up to 100mT (Wide range setting)
  • Supports I²C bus interface with two selectable Slave address

Applications

  •                                 Smartphone, smart watch, smart headphones, security devices, etc.


Specifications

Part Number
AK09973D
Power Supply Voltage (MIN.) [V]
1.65
Power Supply Voltage (MAX.) [V]
1.95
Magnetic Sensitivity [μT/LSB]
1.1 (High sensitivity setting)
Measurement range [mT]
X, Y, Z ±36 (High sensitivity setting)
Measurement Time [ms]
0.265 (Low power drive)
Noise (Power Mode) [nT rms]


Current Consumption (@100Hz ODR) [μA]
22 (Low power drive)
Current Consumption when measuring [mA]
1.4
Output pin
Interrupt pin (Open Drain)
Control Interface
I²C  (Two selectable Slave addresses)
Max. ODR [Hz]


Operating Temperature [℃]
-30 to 85
Device Package
WLCSP
Number of Pins
5

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
8000
Replacement P/N

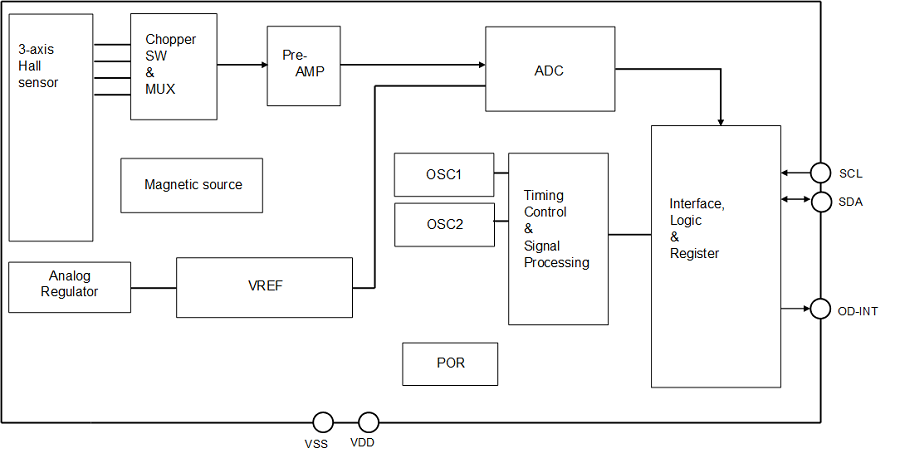

Block Diagram

Block Diagram
