AK2360A

EOL

2 Way Radio Scrambler IC

2 Way Radio Scrambler IC

EOL

Description

The AK2360A is a secure voice circuit IC that uses the frequency inversion method, and is suitable for half-duplex (HALF DUPLEX) communication radios.
The AK2360A uses a DBM (Double Balanced Mixer) to obtain the inversion frequency, and by placing various filters before and after the DBM, sound quality degradation is kept low.

Key Features

  • Equipped with a secure voice circuit.
  • Reduced sound quality degradation by suitable the placement of various filters.

Applications

  •                                 Two way radio.


Specifications

Part Number
AK2360A
Audio Filter (0.3 to 3.0kHz)


Emphasis / Compandor


Scrambler
Yes
MSK Modem (1.2k / 2.4kbps)


CTCSS


DTMF Receiver


8bit DAC (Volume)


Master Clock [MHz]
5.3125
Other


Operating Temperature [℃]


Device Package
VSON
Number of Pins
8

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
3000
Replacement P/N

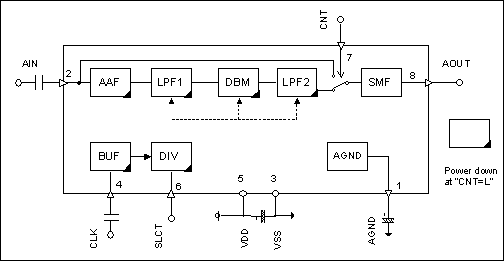

Block Diagram

Block Diagram
