AK4627VQ
EOL
96kHz / 192kHz 24-bit 4 ch ADC & 6 ch DAC with Differential Input
96kHz / 192kHz 24-bit 4 ch ADC & 6 ch DAC with Differential Input
EOL
Description
The AK4627VQ is a single chip audio CODEC that includes four ADC channels and six DAC channels. The converters are designed with Enhanced Dual-Bit architecture for the ADC’s, and Advanced Multi-Bit architecture for the DAC, enabling very low noise performance. The AK4627VQ ADC supports both single-ended and differential inputs and outputs. A wide range of applications can be realized, including home theater, pro audio and car audio. The AK4627VQ is available in a 48-pin LQFP package.
Applications
-
Suited for digital surround for home theater and car audio. etc
Specifications
| Part Number |
AK4627VQ |
|---|---|
| Number of Channels (AD) |
4 |
| Number of Channels (DA) |
6 |
| Bits [bit] |
24 |
| S/N (AD) [dB] |
102 |
| S/N (DA) [dB] |
106 |
| THD+N (AD) [dB] |
-92 |
| THD+N (DA) [dB] |
-90 |
| Power Supply Voltage (MIN.) [V] |
4.5 |
| Power Supply Voltage (TYP.) [V] |
5.0 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| Microphone Amplifier | |
| Speaker Amplifier | |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
LQFP |
| Number of Pins |
48 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL3 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

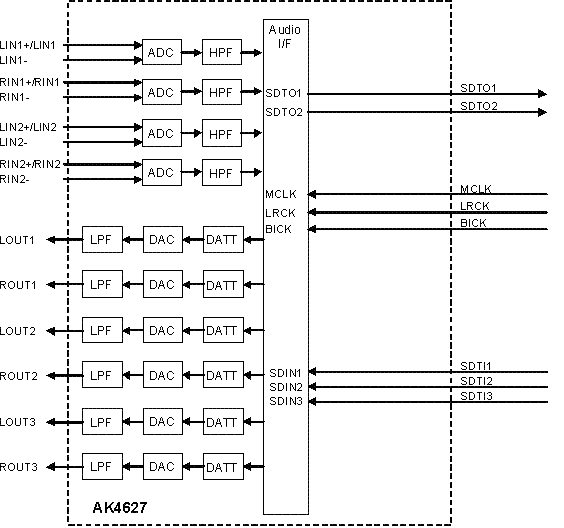

Block Diagram
