AK8140A

EOL

Programmable Multi Clock Generator

Programmable Multi Clock Generator

EOL

Description

AK8140A is AKM’s High-performance programmable clock generator.
AK8140A generates up to four output clocks from a single input frequency with two fractional-N PLLs. Each output can be programmed for any frequency up to 230MHz.
AK8140A is available in a 24-pin ETSSOP package.

Key Features

  • Programmable Multi Clock Generator

Applications

  •                                 Automotive Ethernet AVB System, Automotive Video System, Car Navigation and Display Audio, Audio Amplifier System, AV Receiver, DTV System, STB, IP-STB, DVD Player and DVD Recorder


Specifications

Part Number
AK8140A
Output Frequency [MHz]
0.078125 to 230
Input Frequency [MHz]
4 to 100
Power Supply Voltage (MIN.) [V]
3.0 / 1.7
Power Supply Voltage (TYP.) [V]
3.3 / 1.8
Power Supply Voltage (MAX.) [V]
3.6 / 1.9
Output Voltage [V]
3.3 / 1.8
Number of Output Channel
4
Output Interface
LVCMOS / LVDS
Input Interface
XO / LVCMOS
Other
Automotive grade
Operating Temperature [℃]
-40 to 85
Device Package
HTSSOP
Number of Pins
24

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL3
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

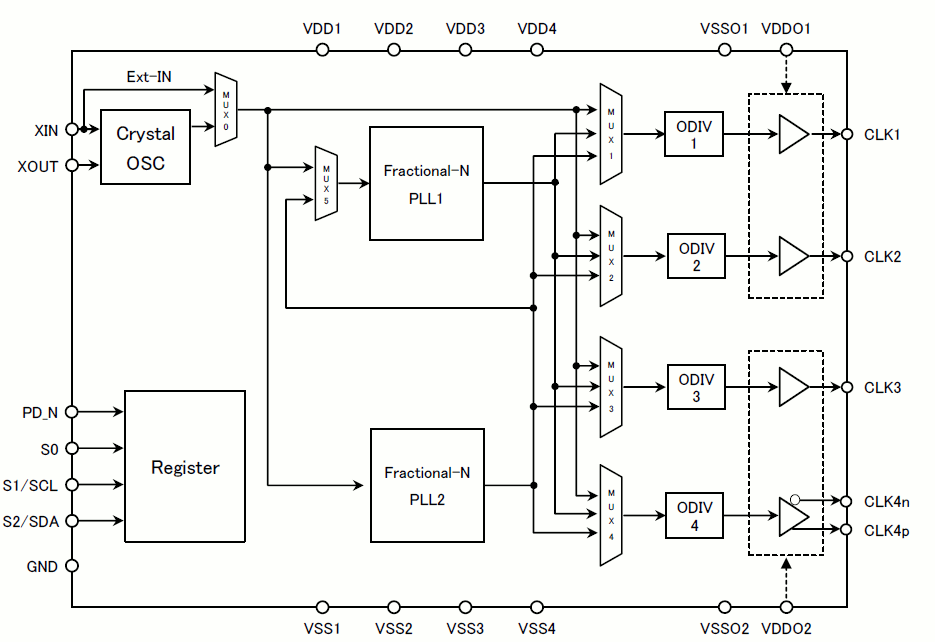

Block Diagram

Block Diagram
