AK8147DV2
EOL
Programmable Clock Generator
Programmable Clock Generator
EOL
Description
The AK8147DV2 is a member of AKM’s High-performance programmable clock generator. The AK8147DV2 generates up to six output clocks from a single input frequency with four fractional-N PLLs. Each output can be programmed for any frequency up to 148.5MHz. PLLs in AK8147DV2 are derived from AKM’s long-term-experienced clock device technology, and enable clock output to perform low jitterand to operate with very low current consumption. In addition, enables ‘Dynamic Frequency Control’. The AK8147DV2 is available in a 32-pin QFN package.
Key Features
-
Programmable Multi Clock Generator
Applications
-
Car Navigation, Display Audio, Automotive Video System, AVB Ethernet and VCXO replacement , Audio Amplifier System, AV Receiver, DTV System, STB, IP-STB, DVD Player and DVD Recorder
Specifications
| Part Number |
AK8147DV2 |
|---|---|
| Output Frequency [MHz] |
0.0001875 to 148.5 |
| Input Frequency [MHz] |
2.8224 to 100 |
| Power Supply Voltage (MIN.) [V] |
3.0 / 1.7 |
| Power Supply Voltage (TYP.) [V] |
3.3 / 1.8 |
| Power Supply Voltage (MAX.) [V] |
3.6 / 3.6 |
| Output Voltage [V] |
3.3 / 1.8 |
| Number of Output Channel |
6 |
| Output Interface |
LVCMOS |
| Input Interface |
XO / LVCMOS |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
HWQFN |
| Number of Pins |
32 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

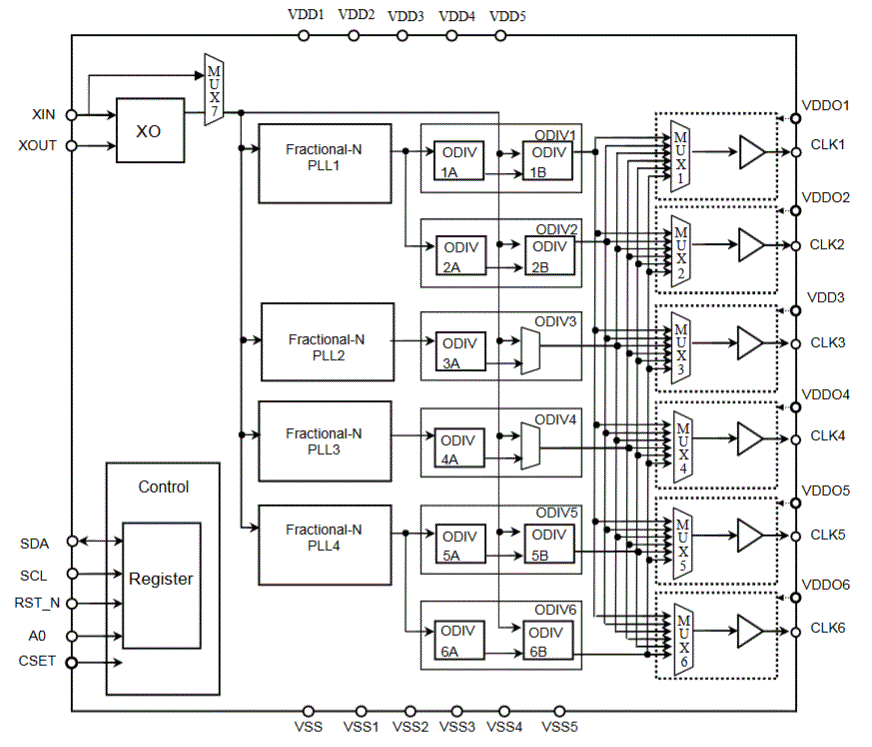

Block Diagram
