AK8442AVQ
EOL
16-bit 35 MSPS/ch 3 ch video ADC & CCD interface with internal TG
16-bit 35 MSPS/ch 3 ch video ADC & CCD interface with internal TG
EOL
Description
The AK8442A comprises an A / D converter consisting of a 3.3 V 16-bit 3 channel 35 MSPS/ch CMOS with integrated CDS circuitry and TG for linear CCD drive. It is optimized for scanner and copier applications.
Key Features
-
Equipped with timing generator and CdS circuit
Applications
-
Scanners, copiers, etc.
Specifications
| Part Number |
AK8442AVQ |
|---|---|
| Number of Input Channels |
3 |
| Maximum Conversion Rate [MSPS/Ch] |
35 |
| ADC Resolution [bit] |
16 |
| Sensor Type |
CCD |
| Power Supply Voltage (MIN.) [V] |
3.0 |
| Power Supply Voltage (TYP.) [V] |
3.3 |
| Power Supply Voltage (MAX.) [V] |
3.6 |
| Output Type |
LVDS |
| Other | |
| Operating Temperature [℃] |
0 to 70 |
| Device Package |
LQFP |
| Number of Pins |
80 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL2 |
| Packaging |
TRAY |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
119 |
| Replacement P/N |

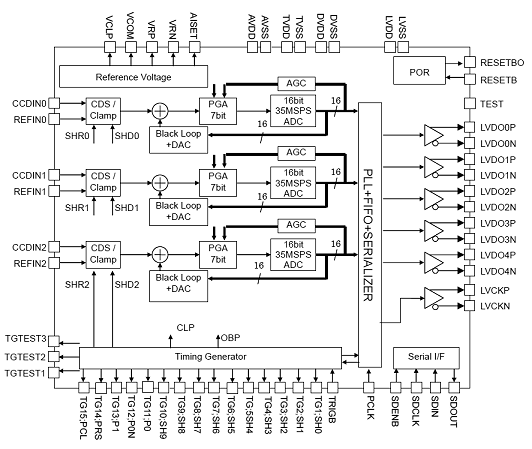

Block Diagram
