AP1041AEN
EOL
32V 1.0A 1 ch H-Bridge Motor Driver IC
32V 1.0A 1 ch H-Bridge Motor Driver IC
EOL
Description
The AP1041AEN is a 1 channel H-Bridge motor driver that supports a maximum output current of 1.0A and from 8V to 32V operation voltage. The control mode of the AP1041AEN can be switched between parallel input mode and complemental input mode by the SEL pin. The built-in PWM duty control circuit enables speed adjustment of the motor by the VREF voltage for both forward and reverse rotations. The AP1041AEN has a through current prevention, a low voltage detection, a thermal protection and an overcurrent protection circuits for the output stage as protection circuits. The detection time of the overcurrent protection circuit can be adjusted by the resistance value connected to the TBLANK pin. The AP1041AEN adopts a space saving 24-pin QFN package with good heat dissipation. It is suitable for a high current DC brush motor driver IC.
Key Features
-
Safety devices are installed. The low-voltage detection circuit, overheat protection circuit, and overcurrent protection circuit are installed, so you can use it with confidence.
-
Speed adjustment The speed can be adjusted by changing the duty with PWM control.
Applications
-
High current motor drive. etc.
Specifications
| Part Number |
AP1041AEN |
|---|---|
| Number of Channels |
1 |
| Motor Voltage(VM) (MIN.) [V] |
8.0 |
| Motor Voltage (VM) (TYP.) [V] |
24.0 |
| Motor Voltage (VM) (MAX.) [V] |
32.0 |
| Control Voltage (VC) (MIN.) [V] | |
| Control Voltage (VC) (TYP.) [V] | |
| Control Voltage (VC) (MAX.) [V] | |
| DC Current (Max) [A] |
0.9 |
| Peak Current (MAX.) [A] |
1.0 |
| Other | |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
24 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL3 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

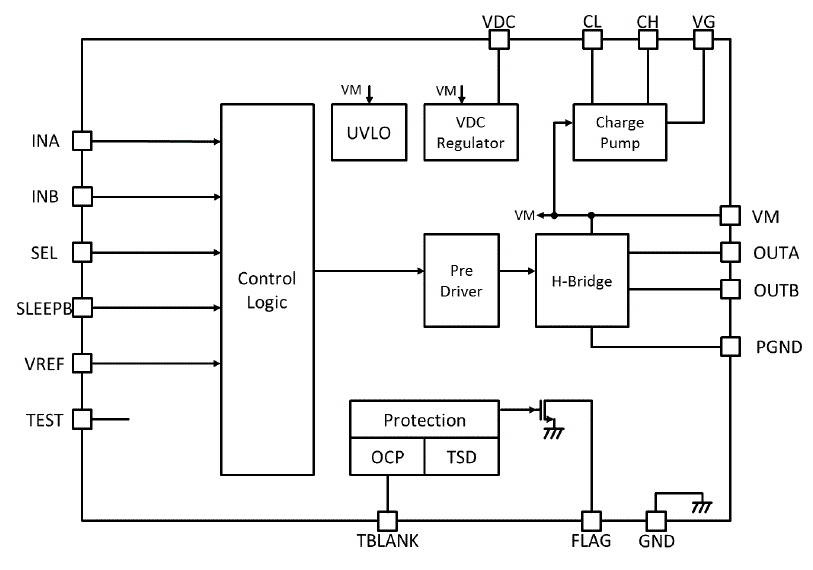

Block Diagram
