AK5554VN

MP

115dB 768kHz / 32-bit 4 ch Premium ADC

115dB 768kHz / 32-bit 4 ch Premium ADC

MP

Description

The AK5554VN is a 32-bit, 768kHz sampling, differential input A / D converter for digital audio systems. It achieves 115dB dynamic range and 106dB S / (N + D) while maintaining low power consumption performance. The AK5554VN integrates a 4 channel A / D converter, suitable for mixers and multi-channel recorders. Four types of digital filters are integrated and selectable according to the sound quality preference. The AK5554VN can be easily connected to a DSP by supporting TDM audio formats. Additionally, it supports DSD output up to 11.2MHz. The channel summation mode improves the dynamic range performance by summing-up multiple channel A / D data and averaging. The dynamic range is improved to 118dB in 4 to 2 mode and to 121dB in 4 to 1 mode.

Applications

  •                                 Equipment such as studio mixers and in-vehicle amplifier units that handle recording and editing of high-resolution high-resolution and DSD sound sources.


Specifications

Part Number
AK5554VN
Number of Channels
4
Analog Input Type
Differential
Bits [bit]
32
Max fs [kHz]
768
THD+N [dB]
-106
S/N [dB]
115 (121*)
Power Supply Voltage (MIN.) [V]
4.5
Power Supply Voltage (TYP.) [V]
5.0
Power Supply Voltage (MAX.) [V]
5.5
PLL


Microphone Amplifier


Other
VELVETSOUND, Automotive grade
Operating Temperature [℃]
-40 to 105
Device Package
HVQFN
Number of Pins
48

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

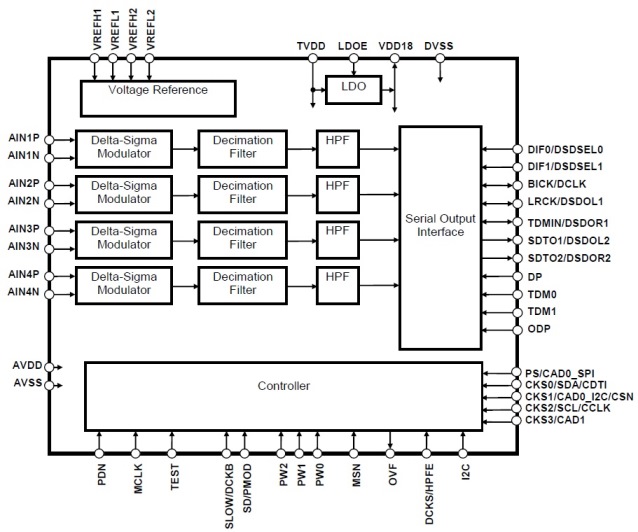

Block Diagram
