AK5574EN

MP

121dB 768kHz / 32-bit 4-ch Premium ADC

121dB 768kHz / 32-bit 4-ch Premium ADC

MP

Description

The AK5574EN is a 32-bit, 768kHz sampling, differential input A / D converter for digital audio systems. It achieves 121dB dynamic range and 112dB S / (N + D) while maintaining low power consumption performance.
The AK5574EN integrates a 4 channel A / D converter, suitable for mixers and multi-channel recorders. Four types of digital filters are integrated and selectable according to the sound quality preference.
The AK5574EN can be easily connected to a DSP by supporting TDM audio formats. Additionally, it supports DSD output up to 11.2MHz. The channel summation mode improves the dynamic range performance by summing-up multiple channel A / D data and averaging. The dynamic range is improved to 124dB in 4 to 2 mode and to 127dB in 4 to 1 mode.

Key Features

  • Differential-input 4-ch 32-bit ADC
  • Various output formats: PCM768kHz, TDM512, DSD256
  • Pin- and register-compatible with AK5552VN, AK5554VN and AK5572EN

Applications

  •                                 Studio mixer and other equipment that handles high resolution and DSD sound source recording. etc.


Specifications

Part Number
AK5574EN
Number of Channels
4
Analog Input Type
Differential
Bits [bit]
32
Max fs [kHz]
768
THD+N [dB]
-112
S/N [dB]
121 (127*)
Power Supply Voltage (MIN.) [V]
4.75
Power Supply Voltage (TYP.) [V]
5.00
Power Supply Voltage (MAX.) [V]
5.25
PLL


Microphone Amplifier


Other
VELVETSOUND
Operating Temperature [℃]
-40 to 105
Device Package
HVQFN
Number of Pins
48

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

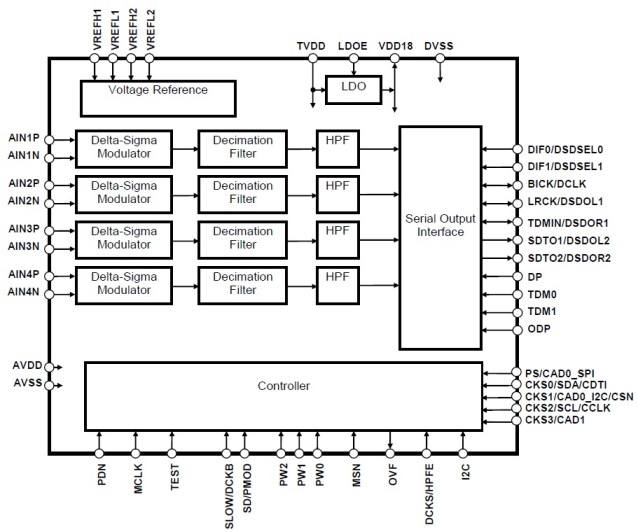

Block Diagram

Block Diagram
