AK5705ECB

MP

4-CH ADC with microphone amplifier that archives DR 109dB at 9.7mW. Connectable with current output devices.

4-CH ADC with microphone amplifier that archives DR 109dB at 9.7mW. Connectable with current output devices.

MP

Description

The AK5705 is a high-performance four-channel 32-bit analog-to-digital converter (ADC) suitable for audio, voice recognition, voice control, and teleconferencing applications.
The AK5705's low-noise, low-power microphone amplifier is suitable for high S/N microphone applications and offers a dynamic range of 109[dB].
The built-in transimpedance amplifier for current-to-voltage conversion allows the output current of a sensor or photodiode to be converted to digital data.
The AK5705 supports sampling frequencies up to 384[kHz] and can support up to 16-channel microphone arrays by connecting multiple AK5705s.

Key Features

  • Dynamic range of 109[dB] with low power consumption
  • Built-in AC coupling capacitors significantly reduce mounting area including external components
  • Built-in microphone amplifier and transimpedance amplifier

Applications

  •                                 Wearable devices, Virtual reality terminals (AR/VR), Microphone array systems, Security equipment, IC Recorders


Specifications

Part Number
AK5705ECB
Number of Channels
4
Analog Input Type
Single / Differential
Bits [bit]
32
Max fs [kHz]
384
THD+N [dB]
-87
S/N [dB]
109
Power Supply Voltage (MIN.) [V]
1.7 / 3.0
Power Supply Voltage (TYP.) [V]
1.8 / 3.3
Power Supply Voltage (MAX.) [V]
1.9 / 3.6
PLL
Yes
Microphone Amplifier
Yes
Other
Cascade TDM I/F
Operating Temperature [℃]
-40 to 85
Device Package
WLCSP
Number of Pins
25

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
5000
Replacement P/N

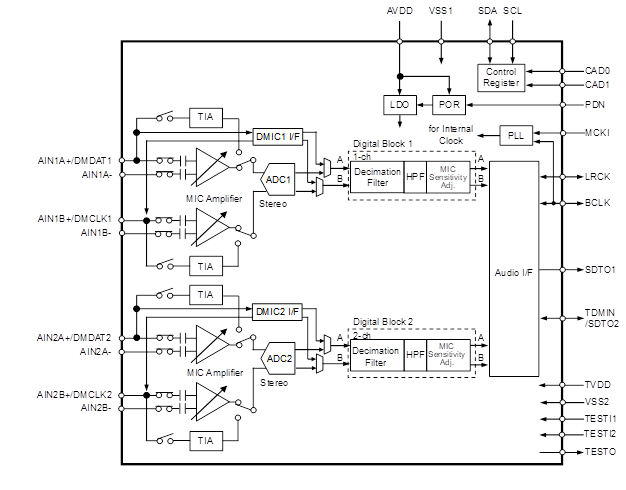

Block Diagram

Block Diagram
