AK5720ET

NRND

2 ch ADC with Mic-Amplifier

NRND

Description

The AK5720ET is a low voltage 24-bit A / D converter for digital audio systems.

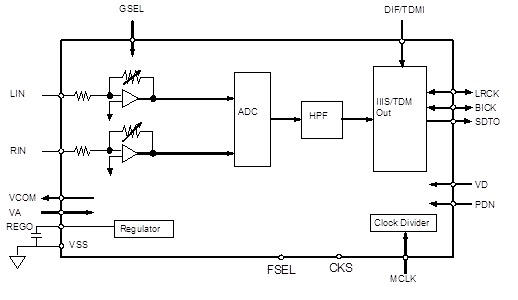

The AK5720ET includes an Input Gain Amplifier, making it suitable for microphone applications. The analog signal input of the AK5720ET is single-ended, eliminating the need for external filters.
The AK5720ET is housed in a space-saving 16-pin TSSOP package.

Key Features

```
Single-ended input 24-bit stereo ADC
```
```
Low latency
```
```
TDM256 output supported
```

Applications

                                Digital Audio Devices

Specifications

Part Number	AK5720ET
Number of Channels	2
Analog Input Type	Single
Bits [bit]	24
Max fs [kHz]	96
THD+N [dB]	-94
S/N [dB]	102
Power Supply Voltage (MIN.) [V]	2.7
Power Supply Voltage (TYP.) [V]	3.0 or 5.0
Power Supply Voltage (MAX.) [V]	5.5
PLL
Microphone Amplifier	Yes
Other	Cascade TDM I / F
Operating Temperature [℃]	-40 to 105
Device Package	TSSOP
Number of Pins	16
