AK5734VN

NEW

4-Channel Audio ADC with Diagnostics

4-Channel Audio ADC with Diagnostics

NEW

Description

The AK5734VN is a 4 channel ADC that supports line and microphone inputs with an SAR ADC for error detection. The error detection function monitors connection status of line and microphone inputs. The AK5734VN has Pre-Gain Amplifiers (PGA) for microphone and Microphone bias (MIC bias) voltage sources.
The AK5734VN is these functions make it ideal for microphone array applications such as automotive Active Noise Cancellation (ANC), etc. The AK5734VN is TDM audio format makes it easy to connect with a DSP.

Applications

  •                                 Active Noise Cancellation systems (ANC), Road Noise Control system (RNC), Microphone modules, Automotive amplifier units, Automotive head units, car audio, Telematic Control Unit (TCU), etc.


Specifications

Part Number AK5734VN
Number of Channels 4
Analog Input Type Differential / Single
Bits [bit] 24
Max fs [kHz] 192
THD+N [dB] -92
S/N [dB] 100
Power Supply Voltage (MIN.) [V] 3.0
Power Supply Voltage (TYP.) [V] 3.3
Power Supply Voltage (MAX.) [V] 3.6
PLL
Microphone Amplifier Yes
Other Mic-diagnostics, Cascade TDM I/F, Automotive grade
Operating Temperature [℃] -40 to 105
Device Package HVQFN
Number of Pins 48

Product Information

Part Status NEW
Pb Free Yes
Halogen Free Yes
MSL MSL2
Packaging TAPE
JEDEC Standard Packaging Compliant
Minimum Order Quantity [pcs.] 1000
Recommended Order Quantity 1 [pcs.] 9000
Recommended Order Quantity 2 [pcs.] 2000
Standard Packing Quantity [pcs.] 1000
Replacement P/N

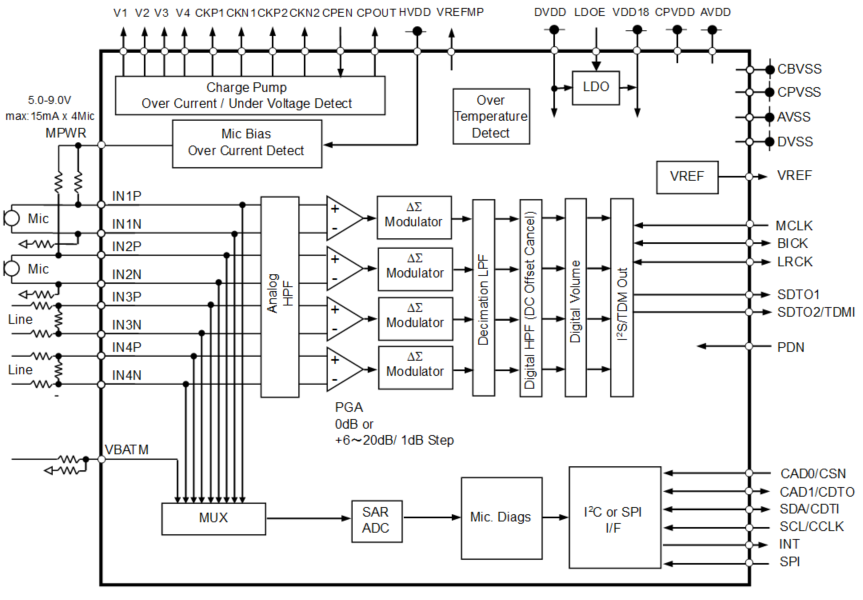

Block Diagram

Block Diagram
