AK5736VN

MP

6ch ADC with Mic Amplifier and Low latency

6ch ADC with Mic Amplifier and Low latency

MP

Description

Asahi Kasei Microdevices Corporation, (AKM), has developed a 6ch A/D converter, (ADC), the AK5736 for microphones in Active Noise Cancellation, (ANC*), systems implemented in car audio. The AK5736 features the low latency of 4.3[1/fs] required for high speed processing with built-in capability to supply microphone power internally. The AK5736 also has a diagnostic function to monitor microphone connection. (*Active Noise Cancellation)
 As a new feature, the AK5736 has an analog gain circuit setting to set a high gain level thus keeping high S/N.
 This product is an upgrade of the AK5730, a 4ch ADC for microphones, released in 2014.

Applications

  •                                 Active Noise Cancellation systems, Microphone modules Automotive amplifier units, Automotive head units, car audio etc.


Specifications

Part Number AK5736VN
Number of Channels 6
Analog Output Type Differential / Single
Bits [bit] 24
Max fs [kHz] 192
THD+N [dB] -92
S/N [dB] 100
Power Supply Voltage (MIN.) [V] 3
Power Supply Voltage (TYP.) [V]
Power Supply Voltage (MAX.) [V] 3.6
PLL
Microphone Amplifier Yes
Other Mic-diagnostics, Cascade TDM I/F, Automotive grade
Operating Temperature [℃] -40 to 105
Device Package HVQFN
Number of Pins 48

Product Information

Part Status MP
Pb Free Yes
Halogen Free Yes
MSL MSL2
Packaging TAPE
JEDEC Standard Packaging Compliant
Minimum Order Quantity [pcs.] 1000
Recommended Order Quantity 1 [pcs.] 9000
Recommended Order Quantity 2 [pcs.] 2000
Standard Packing Quantity [pcs.] 1000
Replacement P/N

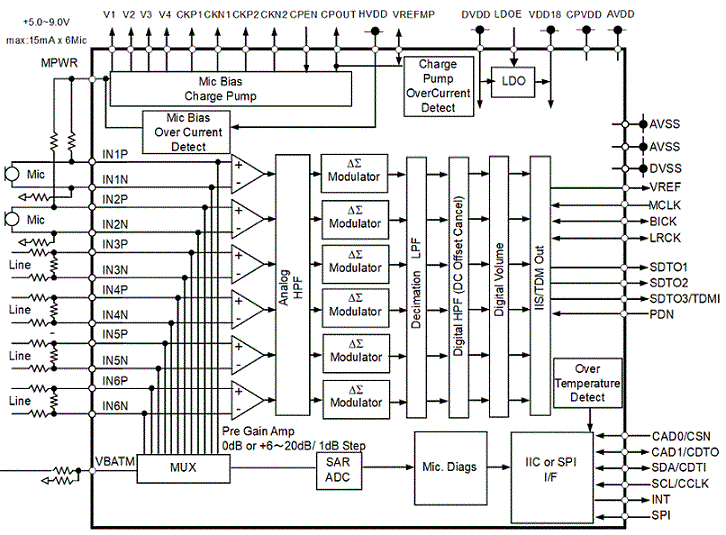

Block Diagram

Block Diagram
