AK4497SVQ
Preview
129 dB Stereo Premium DAC
129 dB Stereo Premium DAC
Preview
Description
The AK4497SVQ is a Stereo Premium DAC that utilizes advanced Switched Capacitor Filter Voltage Output VELVETSOUND™ technology. The AK4497SVQ has six types of digital filters, realizing simple and flexible sound tuning options in wide range of applications. The AK4497SVQ accepts input formats up to 768 kHz, 32-bit PCM and DSD512, making it possible to accurately reproduce the information-rich, unaltered data of high-resolution audio sources. The AK4497SVQ also meets automotive quality standards.
Key Features
-
Analog Characteristics： S/N：129 dB, THD+N：-117 dB
Applications
-
Network Audio, USB DACs, CD/SACD Players, Wireless Speaker Systems, Soundbars, Digital Audio Players, Electronic Musical Instruments, Audio Interfaces, Digital Mixers, Car Audio
Specifications
| Part Number |
AK4497SVQ |
|---|---|
| Number of Channels |
2 |
| Analog Output Type |
Differential |
| Bits [bit] |
32 |
| THD+N [dB] |
-117 |
| S/N [dB] |
129 |
| Power Supply Voltage (MIN.) [V] |
4.75 / 1.7 / 1.7 |
| Power Supply Voltage (TYP.) [V] |
5.0 / 1.8 / 1.8 |
| Power Supply Voltage (MAX.) [V] |
5.25 / 3.6 / 1.98 |
| 2Vrms Line Driver |
- |
| Headphone Amplifier |
- |
| Other |
VELVETSOUND, Automotive grade |
| Operating Temperature [℃] | |
| Device Package |
HTQFP |
| Number of Pins |
64 |
Product Information
| Part Status |
Preview |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
250 |
| Replacement P/N |

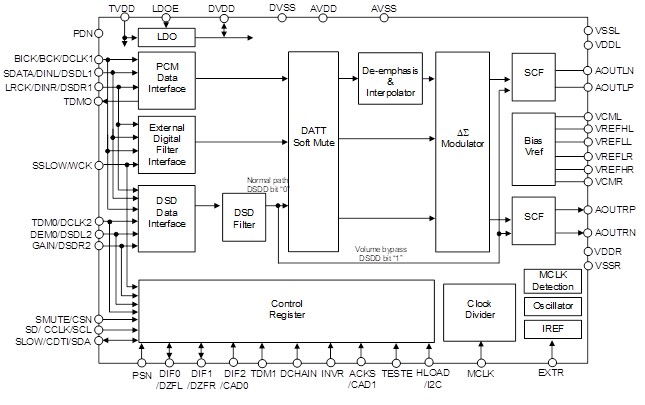

Block Diagram
Download
AK4497SVQ Datasheet
English [Rev.03]
(112 Pages PDF: 2.97MB)
