AK09919C
MP
3-axis electronic compass IC
3-axis electronic compass IC
MP
Description
The AK09919C is a 3-axis electronic compass IC, also known as a magnetometer, with high-sensitibity Hall sensor technology.
The AK09919C has a built-in hihg-sensitibity magnetic sensor that detects geomagnetism, a sensor drive circuit, a signal amplifier, and a processing calculation logic, and outputs the magnitude of the magnetic field in each of X, Y, Z axes as digital value. The AK09919C is ideal for application such as smartphone and smart watch that provide azimuth information for pedestrian navigation functions.
Key Features
-
Upward compatible with AK09918C
-
Supports I3C bus interface
-
Built-in FIFO (16 steps) & 1.2V IO is supported.
Applications
-
Smartphone, smart watch, Wireless headphone, AR/VR devices, etc.
Specifications
| Part Number |
AK09919C |
|---|---|
| Sensitivity (TYP.) [μT/LSB] |
0.15 |
| Analog Power Supply Voltage (MIN.) [V] |
1.65 |
| Analog Power Supply Voltage (TYP.) [V] |
1.8 |
| Analog Power Supply Voltage (MAX.) [V] |
1.95 |
| Digital Interface Power Supply Voltage (MIN.) [V] | |
| Current Consumption Power-down (TYP.) [μA] |
1 |
| Current Consumption Measurement (TYP.) [μA] |
1100 @100Hz |
| Control Interface |
I3C/I²C |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
WLCSP |
| Number of Pins |
4 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL1 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
15000 |
| Replacement P/N |

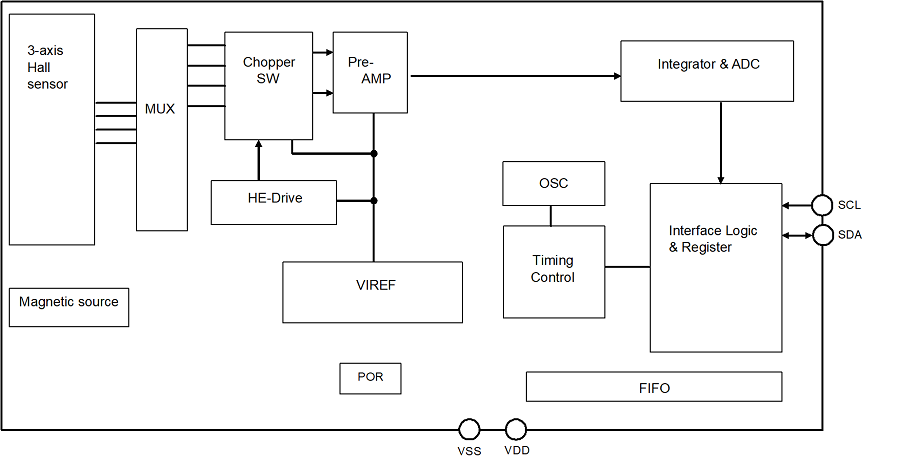

Block Diagram
Download
AK09919C Datasheet
English [200300034-E-00]
(51 Pages PDF: 772KB)
