AK2400
EOL
High integrated receiver for PMR / LMR
High integrated receiver for PMR / LMR
EOL
Description
The AK2400 integrates various functions necessary for a variable bandwidth IF filter, fractional N synthesizer, 12-bit 1Msps ADC, FM demodulator and receiver in an 8mm☐ package. A circuit layout that takes into account the interference between each block ensures that characteristics are not compromised by integration, facilitating the design of increasingly complex radio systems.
Key Features
-
Equipped with variable band IF filter
Applications
-
Narrowband high performance professional digital wireless systems (Channel spacing for 6.25kHz, 12.5kHz), Public safety and community wireless systems, Marine / mobile communication systems, Low power radio systems, Monitoring and control telemeter systems.
Specifications
| Part Number |
AK2400 |
|---|---|
| Description |
Super heterodyne Rx |
| RF Frequency (MIN.) [MHz] |
10 |
| RF Frequency (TYP.) [MHz] | |
| RF Frequency (MAX.) [MHz] |
2000 |
| Current Consumption [mA] |
23 |
| Power Supply Voltage (MIN.) [V] |
2.7 |
| Power Supply Voltage (TYP.) [V] |
3.0 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| Other | |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
HVQFN |
| Number of Pins |
56 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
No |
| MSL |
MSL2 |
| Packaging |
TAPE |
| Moisture Barrier Packaging |
Based on JEDEC J‑STD‑033 guidelines |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

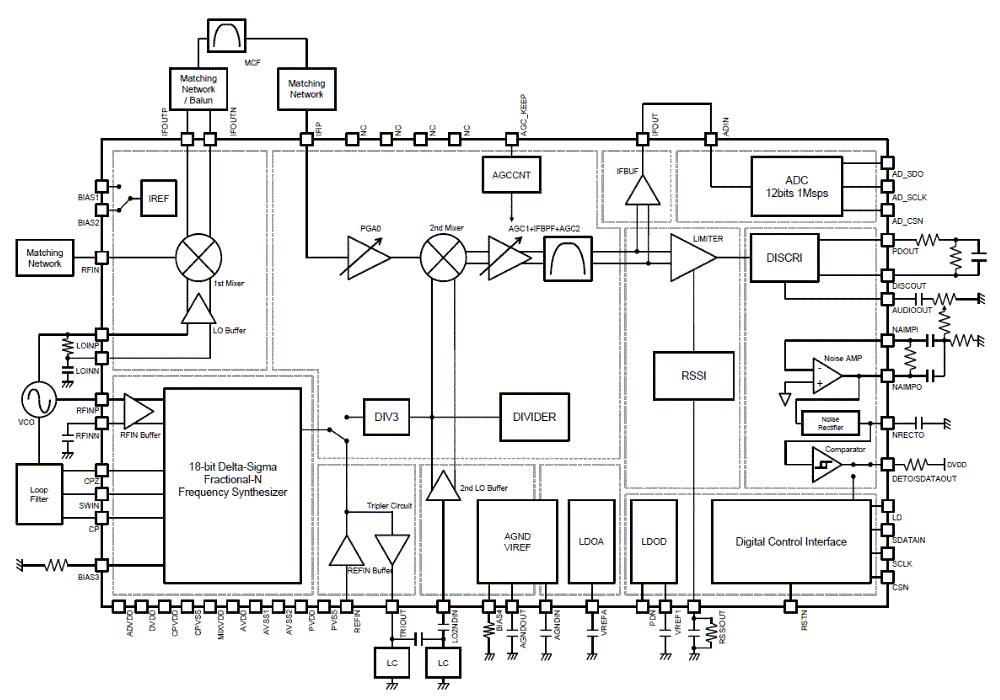

Block Diagram
