AK3713
EOL
ASK / FSK Transmitter IC for Remote Keyless Entry
ASK / FSK Transmitter IC for Remote Keyless Entry
EOL
Description
AK3713 is UHF transmitter 1 chip IC. Ideal for KeyFOB used in the transmitter of RKE (Remote Keyless Entry) system.
Key Features
-
Remote Keyless Entry (RKE)
Applications
-
Automotive Remote Keyless Entry (RKE) systems.
Specifications
| Part Number |
AK3713 |
|---|---|
| Power Supply Voltage (MIN.) [V] |
2 |
| Power Supply Voltage (TYP.) [V] | |
| Power Supply Voltage (MAX.) [V] |
3.6 |
| Current Consumption [mA] |
11mA ( Output power: +8dBm ) |
| Input / Output Frequency Range [GHz] |
312.05 MHz to 315.15 MHz and 433.09 MHz to 434.59 MHz |
| Receiver Sensitivity [dBm] | |
| Output Power [dBm] |
+8 dBm ( Maximum power ) |
| Modulation / Demodulation |
ASK/FSK |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
20 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL1 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

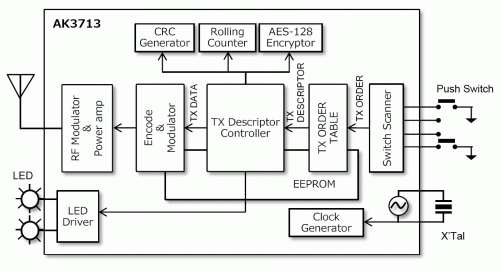

Block Diagram
