AK8473VN

EOL

4 ch input 16-bit 16MSPS/ch AFE for CIS scanner with LED driver

4 ch input 16-bit 16MSPS/ch AFE for CIS scanner with LED driver

EOL

Description

The AK8473VN is an AFE for 4 channel contact image sensor (CIS). It has offset and gain adjusting functions, timing generator for CIS, LVDS
interface and LED drivers. The AK8473VN is suitable for CIS base multi-function printers and image scanners.

Key Features

  • Equipped with timing generator, LVDS interface, LED driver

Applications

  •                                 MFP, scanner, etc.


Specifications

Part Number
AK8473VN
Number of Input Channels
4
Maximum Conversion Rate [MSPS/Ch]
16
ADC Resolution [bit]
16
Sensor Type
CMOS
Power Supply Voltage (MIN.) [V]
3.0 , 3.0
Power Supply Voltage (TYP.) [V]
5.0 , 3.3
Power Supply Voltage (MAX.) [V]
5.7, 3.6
Output Type
LVDS
Other


Operating Temperature [℃]
0 to 70
Device Package
HWQFN
Number of Pins
36

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL2
Packaging


JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

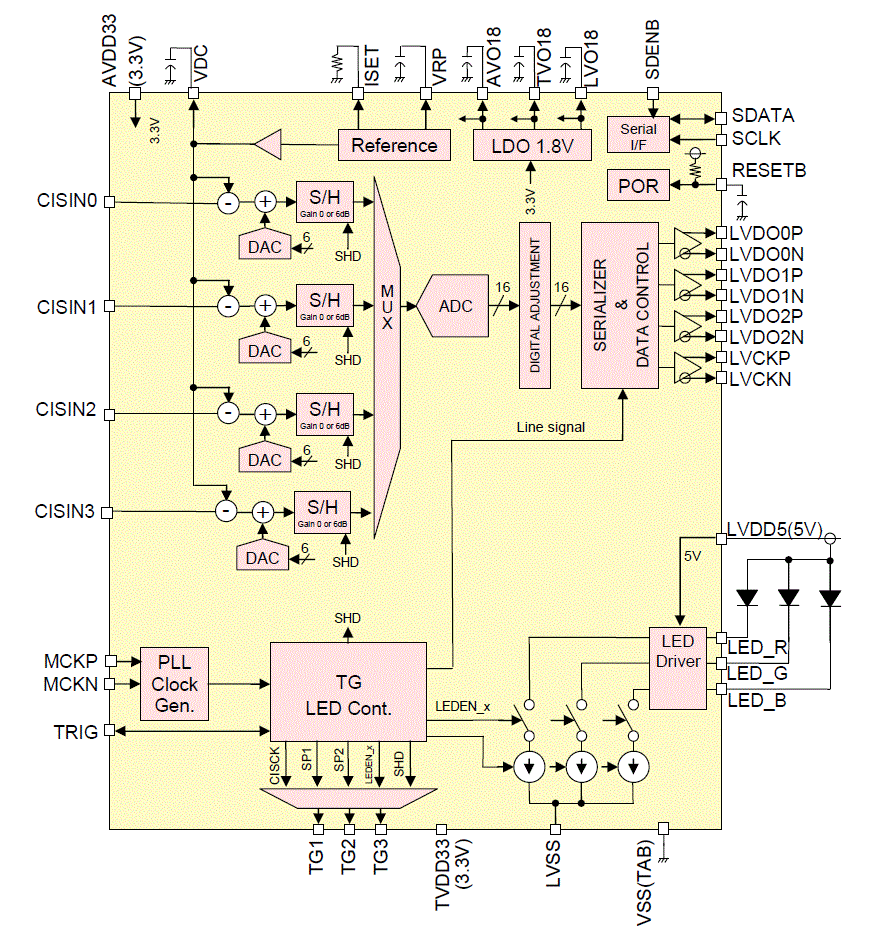

Block Diagram

Block Diagram
