AP1015BEN

EOL

2.2V ~ 10.5V, 2A, 1 ch H-Bridge Low Noise, Small Package Motor Driver.

2.2V ~ 10.5V, 2A, 1 ch H-Bridge Low Noise, Small Package Motor Driver.

EOL

Description

The AP1015BEN is a 1 channel H-Bride Motor Driver characterized by a small package, low noise and corresponding to a wide motor operating voltage and a high current. The H-bridge of the AP1015BEN employs the P-N construction that eliminates the need for charge pump reducing the external parts, and its low on-resistance realizes high efficiency while keeping low consumption.
The AP1015BEN is a product of the general-purpose H-bridge motor driver AP101x series.

Key Features

  • Low on resistance
    The on-resistance of the built-in driver is low, with a combined high-side and low-side resistance value of 0.5Ω (TYP.), Resulting in low power consumption and high efficiency.

Applications

  •                                 Driving various small motors


Specifications

Part Number
AP1015BEN
Number of Channels
1
Motor Voltage(VM) (MIN.) [V]
2.2
Motor Voltage (VM) (TYP.) [V]


Motor Voltage (VM) (MAX.) [V]
10.5
Control Voltage (VC) (MIN.) [V]
2.7
Control Voltage (VC) (TYP.) [V]
3.3
Control Voltage (VC) (MAX.) [V]
5.5
DC Current (Max) [A]
1.1
Peak Current (MAX.) [A]
2
Other


Operating Temperature [℃]
-30 to 85
Device Package
HUSON
Number of Pins
8

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
5000
Replacement P/N

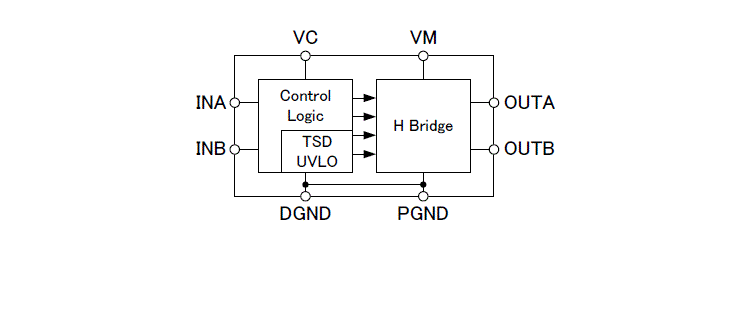

Block Diagram

Block Diagram
