AP1050AEN
EOL
Pre-Driver IC for 3-Phase Brushless Motor
Pre-Driver IC for 3-Phase Brushless Motor
EOL
Description
The AP1050AEN is a pre-driver for a 3-phase brushless motor with built-in power supplies, which operates motor drive voltage in range of 8V to 36V. It incorporates a step-down DC-DC converter and LDOs to generate the power supply that the motor drive system requires. The bootstrap circuit is embedded and it enables to use N type MOSFET for both low side and high side.
Key Features
-
Built-in power supply for motor drive As a power supply required for the motor drive system, it incorporates a step-down DC-DC converter, LDO, and bootstrap circuit. Perfect.
Applications
-
3-phase brushless motor
Specifications
| Part Number |
AP1050AEN |
|---|---|
| Phase |
3 |
| Features |
Buck - DC-DC x1 / LDO x1 / Hi-side Pre - Driver x3 / VGA / ADC / Serial I / F |
| Power Supply Voltage (MIN.) [V] |
8.0 |
| Power Supply Voltage (TYP.) [V] | |
| Power Supply Voltage (MAX.) [V] |
36.0 |
| DC Current (MAX.) [A] | |
| Peak Current (MAX.) [A] | |
| Other | |
| Operating Temperature [℃] | |
| Device Package | |
| Number of Pins |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Not Compliant |
| Minimum Order Quantity [pcs.] | |
| Replacement P/N |

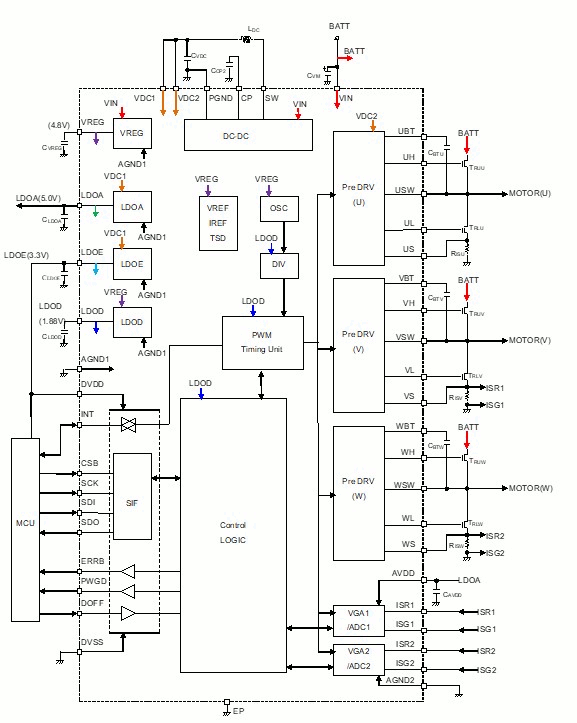

Block Diagram
