AK1110AEU

EOL

Low Noise / High PSRR 2-output LDO Regulator

Low Noise / High PSRR 2-output LDO Regulator

EOL

Description

The AK1110AEU is a 2 output low-saturation regulator IC with on-off control of silicon monolithic bipolar structure. The output voltage is 5V and the output current is 100mA or 200mA.
The AK1110AEU realizes 1μVrms output noise and 100dB ripple rejection, and has low noise. Suitable for applications requiring high PSRR. In systems where there is a risk of inter-block interference due to common power supply, power supply can be separated on a single chip without increasing the number of components. Built-in overheat protection function and overcurrent protection function.

Key Features

  • High PSSR
    Ripple rejection 100dB.
  • Low noise
    Output noise 1μVrms.

Applications

  •                                 High precision DAC applications, RF, PLL, etc.


Specifications

Part Number
AK1110AEU
Input Voltage (MIN.) [V]
6
Input Voltage (TYP.) [V]


Input Voltage (MAX.) [V]
14
Output Voltage (MIN.) [V]


Output Voltage (TYP.) [V]
LDO1:5 , LDO2:5
Output Voltage (MAX.) [V]


Current Output (MAX.) [A]
LDO1:0.2 , LDO2:0.1
Variable Output


Functions
Enable Control
Other


Operating Temperature [℃]
-40 to 85
Device Package
SON
Number of Pins
10

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
3000
Replacement P/N

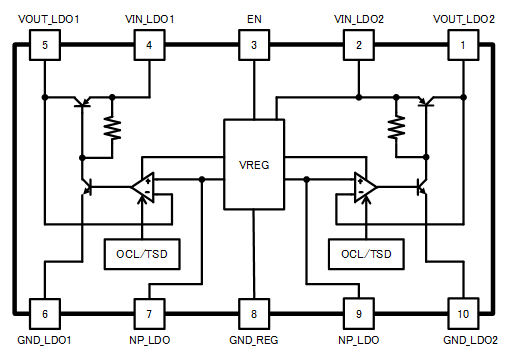

Block Diagram

Block Diagram
