Tri-axis Magnetic Sensors

There is increasing demand for a sensing function to monitor an object’s status in remote locations as IoT products are expected to grow in the market.

AKM has developed the AK09970N, a tri-axis magnetic sensor that is able to detect magnetic signals in X, Y, and, Z directions. The AK09970N supports wide measurement range with high resolution in tri-axis detection and captures magnetic fields in 3-dimensions.

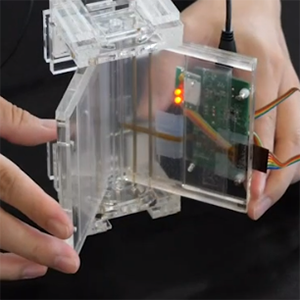

With these abilities, it is great device for controlling the direction of security cameras and connected home, (smart home, smart house), smart locks, along with door and window open/close detection.

High Precision

Tri-axis Magnetic Sensor

AK09940

World-Class Ultra-Low Noise

Ultra-Low Current Consumption

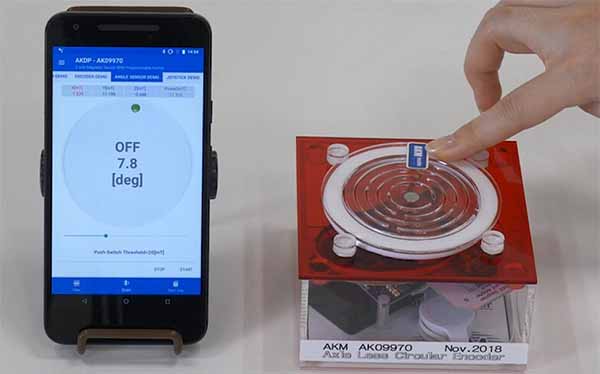

Tri-axis Magnetic Smart Switch

AK09970D

Reduction of Package Area to 1/5 of Conventional Product

Wide Measurement Range & High Resolution

Low-power Consumption when Battery Life is Critical

Lineup

Tri-axis Magnetic Sensors

Part Number
Part Status
Power Supply
Voltage (MIN.)
[V]
Power Supply
Voltage (TYP.)
[V]
Power Supply
Voltage (MAX.)
[V]
Magnetic Sensitivity
[μT/LSB]
Measurement range
[mT]
Measurement Time
[ms]
Noise
(Power Mode)
[nT rms]
Current Consumption
(@100Hz ODR)
[μA]
Current Consumption
when measuring
[mA]
Output pin
Control
Interface
Other
Operating Temperature [℃]
Device Package
Number of Pins
AK09940
NEW
1.7


1.98
0.01
±1.2
0.66 / 0.98 / 1.62 / 2.9
70 / 60 / 50 / 40


30 / 60 / 100 / 200


I2C / 4-wire SPI


-30 to 85
ULGA
11
AK09970N
NEW
1.7


3.6
1.1
X,Y,Z ±36
0.23


27
1.5
Interrupt pin (CMOS/Open Drain)
SPI / I2C


-40 to 85
HWQFN
16
AK09970D
NEW
1.7


3.6
1.1
X,Y,Z ±36
0.23


27
1.5
Interrupt pin (CMOS/Open Drain)
I2C


-40 to 85
WLCSP
6

Aiming to realize a wealthy life

About S-cube

S-cube is a brand name of tri-axis magnetic sensing concept presented by Asahi Kasei Microdevices (AKM).

AKM provides "Magnetic Sensing Solution" that predicts user application needs with its unique IC circuit architecture and information processing algorithm which obtains information hidden in the signal of magnetic sensors.



S3 and S-cube logos are a trademark of Asahi Kasei Microdevices Corporation in Japan, Europe and the United States.
