AK3701

EOL

UHF Receiver IC for Remote Keyless Entry

UHF Receiver IC for Remote Keyless Entry

EOL

Description

AK3701 is UHF receiver IC.
It is suitable for the applications; automotive Remote Keyless Entry (RKE) systems for multi channel.

Key Features

  • Remote Keyless Entry (RKE)

Applications

  •                                 automotive Remote Keyless Entry (RKE) systems for multi channel.


Specifications

Part Number
AK3701
Power Supply Voltage (MIN.) [V]
4.5
Power Supply Voltage (TYP.) [V]
5.0
Power Supply Voltage (MAX.) [V]
5.5
Current Consumption [mA]
9
Input / Output Frequency Range [GHz]
312 MHz to 316 MHz and 433 MHz to 435 MHz
Receiver Sensitivity [dBm]
117 dBm (ASK) / -118 dBm ( FSK  Dev.=+/-15 kHz  BER = 0.1%, Data Rate=2.8 kbps)
Output Power [dBm]
-
Modulation / Demodulation
ASK/FSK
Other
Automotive grade
Operating Temperature [℃]
-40 to 110
Device Package
TSSOP
Number of Pins
28

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

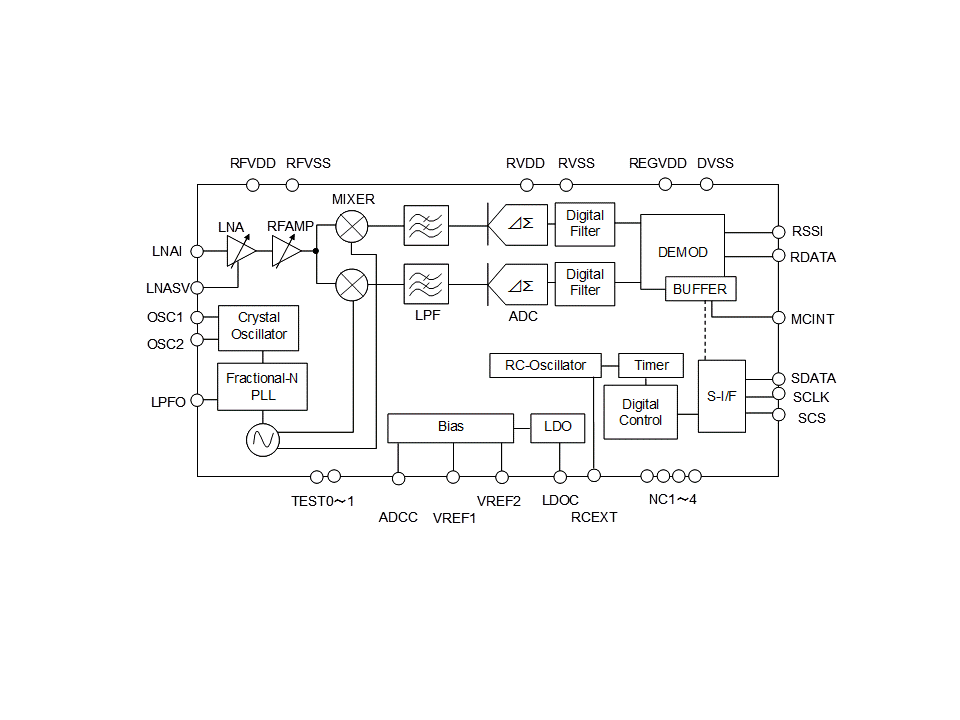

Block Diagram

Block Diagram
