AK8172A

EOL

1.8V Single Clock Generator

1.8V Single Clock Generator

EOL

Description

The AK8172A is a single clock generator IC with an integrated PLL.
It can generate a 72.36MHz clock from a 27MHz master clock input frequency. A high performance PLL locks to the master clock input, generating a low jitter, highly accurate clock output without an external crystal.

Key Features

  • Single Clock Generator

Applications

  •                                 Digital still camera.


Specifications

Part Number
AK8172A
Output Frequency [MHz]
72.36
Input Frequency [MHz]
27
Power Supply Voltage (MIN.) [V]
1.7
Power Supply Voltage (TYP.) [V]
1.8
Power Supply Voltage (MAX.) [V]
1.9
Output Voltage [V]
1.8
Number of Output Channel
1
Output Interface
LVCMOS
Input Interface
LVCMOS
Other
Automotive grade
Operating Temperature [℃]
-20 to 85
Device Package
USON
Number of Pins
4

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
5000
Replacement P/N

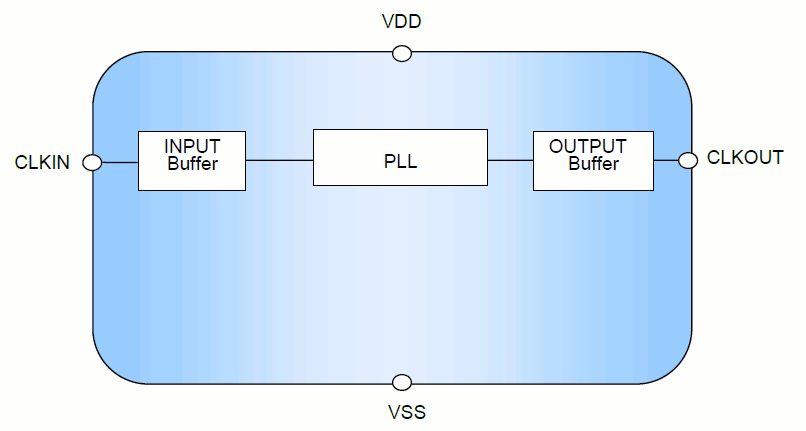

Block Diagram

Block Diagram
