AP1010AEN
EOL
18V 2ch H-Bridge Motor Driver IC
18V 2ch H-Bridge Motor Driver IC
EOL
Description
The AP1010AEN is a 2 channel H-Bridge motor driver compatible with motor operating voltage 18V and can drive two DC motors or one stepping motor. The protection circuit has under voltage lockout circuit, thermal shutdown circuit, and overcurrent protection circuit, and overcurrent protection circuit can be disabled with the DIS OCP terminal. The package adopts a small 16-pin QFN package and contributes to downsize Printed Circuit Board.
Key Features
-
Safety devices are installed The low-voltage detection circuit, overheat protection circuit, and overcurrent protection circuit are installed, so you can use it with confidence.
Applications
-
Drives two DC motors or one stepper motor.
Specifications
| Part Number |
AP1010AEN |
|---|---|
| Number of Channels |
2 |
| Motor Voltage(VM) (MIN.) [V] |
6 |
| Motor Voltage (VM) (TYP.) [V] | |
| Motor Voltage (VM) (MAX.) [V] |
18 |
| Control Voltage (VC) (MIN.) [V] | |
| Control Voltage (VC) (TYP.) [V] | |
| Control Voltage (VC) (MAX.) [V] | |
| DC Current (Max) [A] |
0.7 |
| Peak Current (MAX.) [A] | |
| Other | |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
16 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
4000 |
| Replacement P/N |

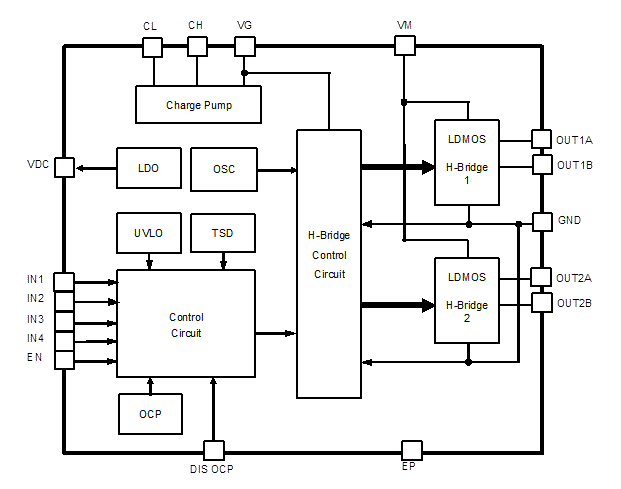

Block Diagram
